3-axis CNC vertical machining center for composite panels

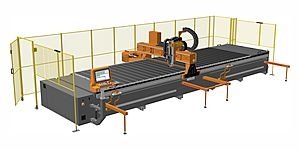

TK 429V - 3-axis CNC vertical machining center with superior machining capability in Y (2000 mm). It features a clamping system made up of vacuum tables that allow panels and plates to be held by vacuum; this solution is useful to obtain an extremely efficient machining of thin components that could hardly be fixed by means of a traditional clamping system.
The TK 429V is equipped with a series of valves that turn on/off different areas of the machining table, thus concentrating the suction on one area and optimizing the clamping of components with limited dimensions.
This machining center is designed for drilling and interpolated milling operations on composite panels, panels and plates in aluminum, stainless steel, titanium and on aluminum profiles.
Standard versions are available in 3 machining lengths: 4000, 6500 and 8200 mm. Upon request the machining center can be manufactured in different lengths in order to meet the special needs of each customer.
The two longer versions of this model can be used in the TWIN mode that allows to divide the machining area into two distinct areas thus reducing the idle time due to loading/unloading operations.
It is available also in the TK 429VF version that is equipped with 4 machining axes.
