TOPPER, GT 630-5AX, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:TOPPER
Model:GT 630-5AX
YOM:2016
Location:Netherlands, BABBERICH
Price:On request
Stock No:7591
Control:CNC
ID:AS29596

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

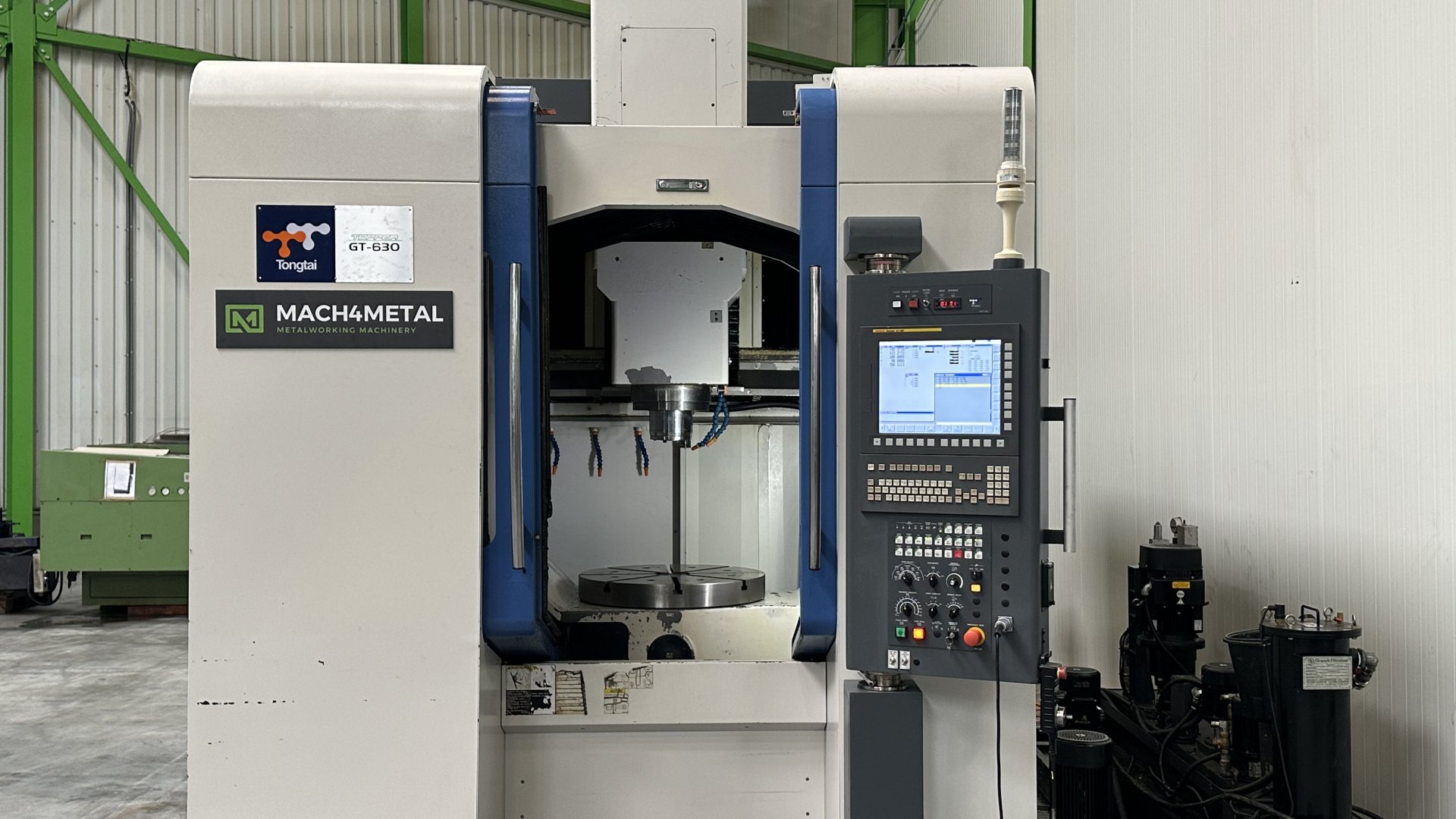

5-axis CNC machine (VMC)
TOPPER - GT 630-5AX
MACH-ID 7591
Make: TOPPER
Type: GT 630-5AX

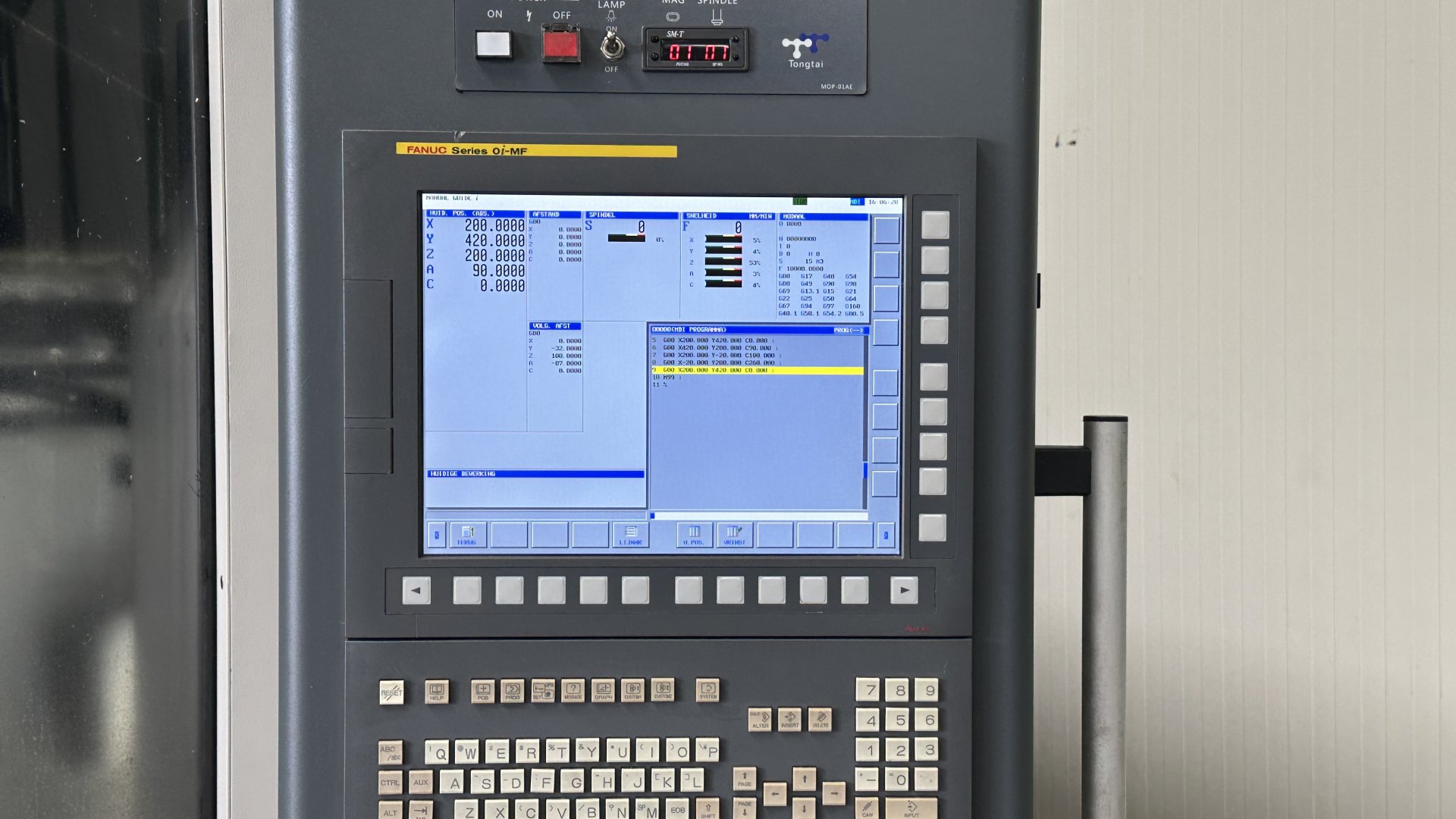

Control: Fanuc Oi-MF
Year: 2016
Chip conveyor
High pressure coolant 40 Bar
Only 1800 cutting Hours
New price EUR 340.000

X - Travel: 760mm
Y - Travel: 820mm
Z - Travel: 560mm

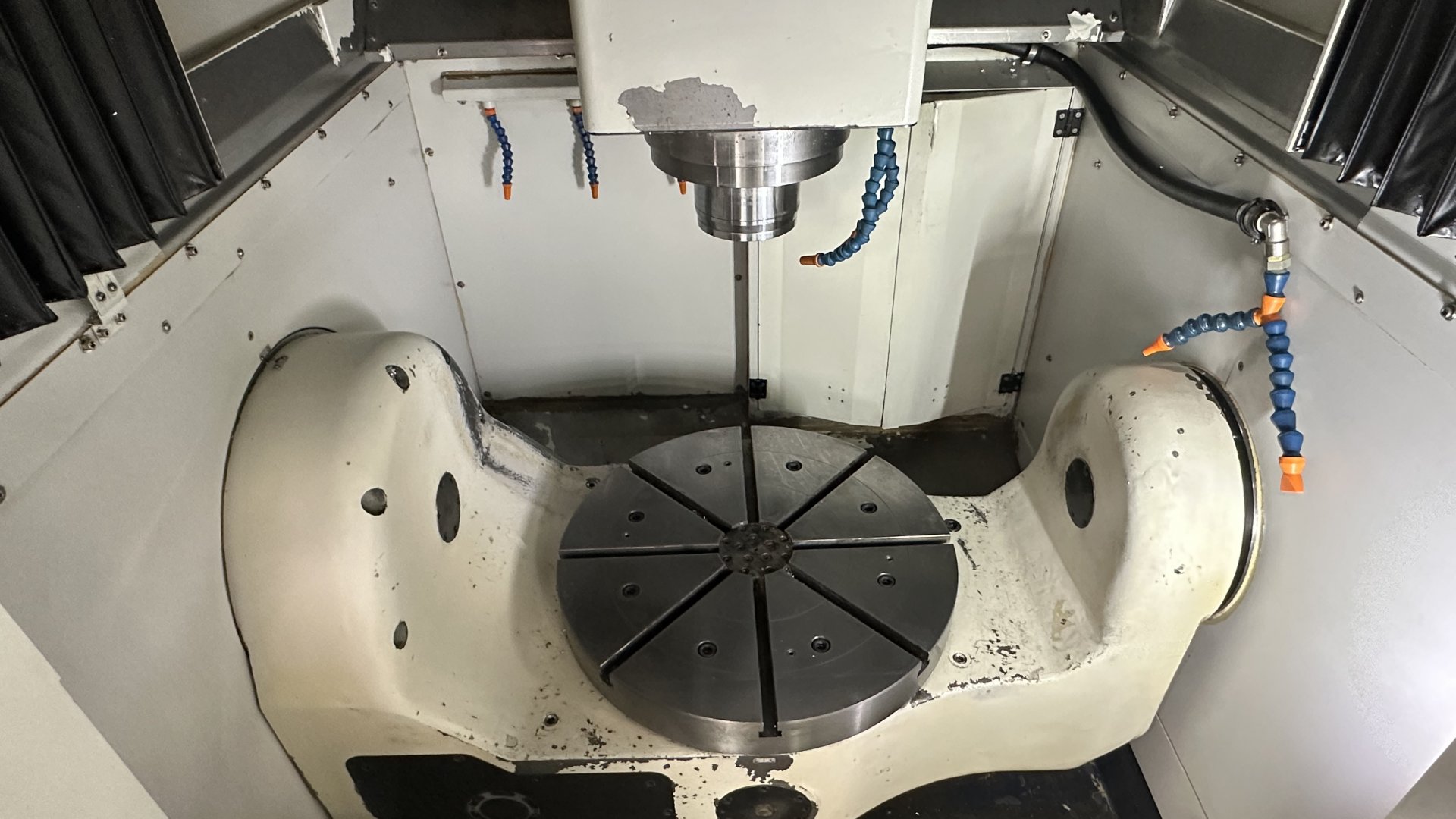

A - Axis: + 30 to - 120 Gr°
B - Axis: 360.000 Gr°
Table load: 600

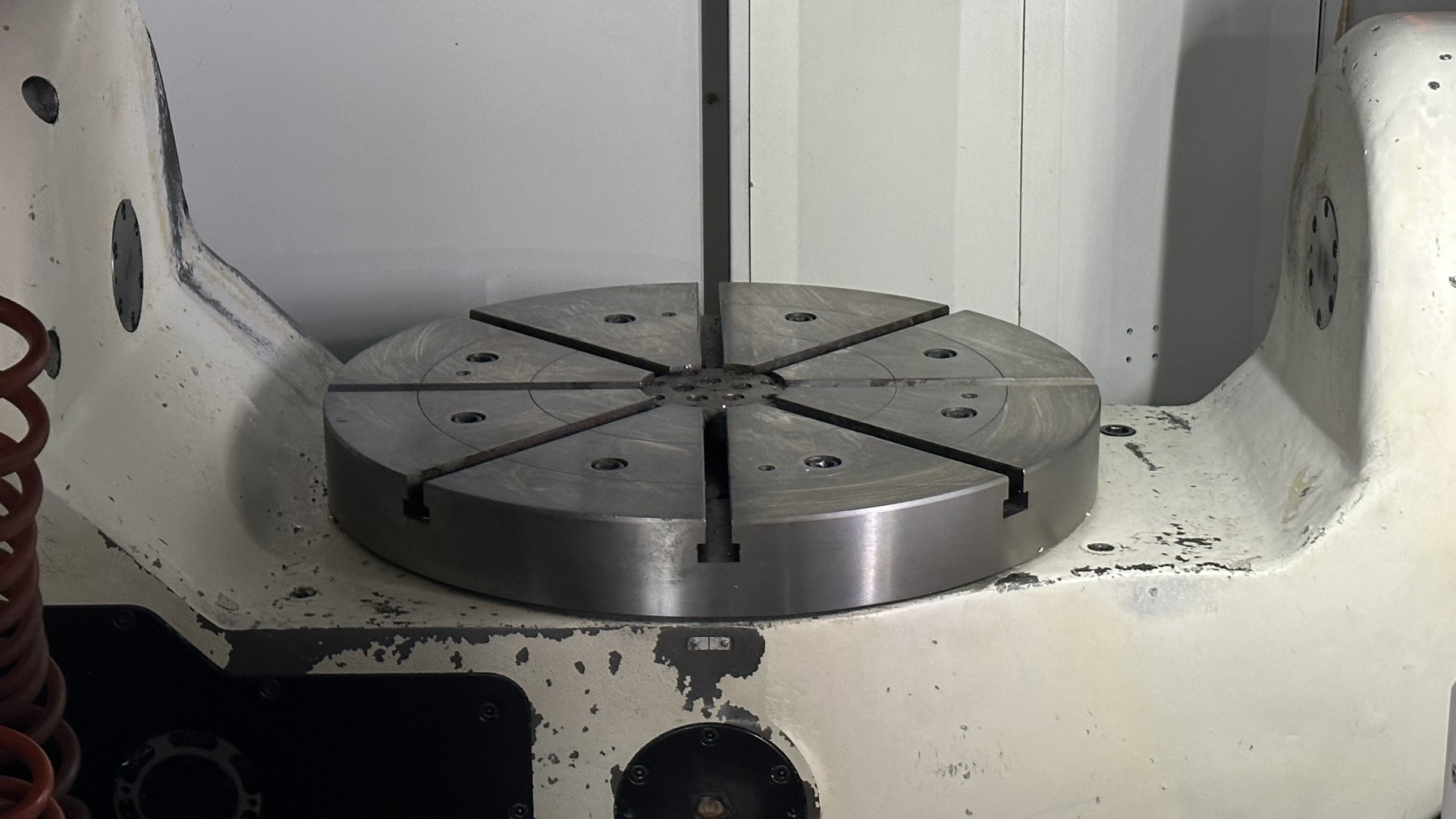

Table Ø: 630mm
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Feed rate A-Axis: 6000Degrees/min
Feed rate B-Axis: 18000Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 40kW
Speeds / ranges: 12000Rpm
ATC / revolver: 32
Coolant true spindle / Bar:40
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6200mm
Width: 2800mm
Height: 3200mm
Weight: 17000kg

Specifications:

5-axis CNC machine (VMC)
TOPPER - GT 630-5AX
MACH-ID 7591
Make: TOPPER
Type: GT 630-5AX
Control: Fanuc Oi-MF
Year: 2016
Chip conveyor
High pressure coolant 40 Bar
Only 1800 cutting Hours
New price EUR 340.000

X - Travel: 760mm
Y - Travel: 820mm
Z - Travel: 560mm
A - Axis: + 30 to - 120 Gr°
B - Axis: 360.000 Gr°
Table load: 600
Table Ø: 630mm
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Feed rate A-Axis: 6000Degrees/min
Feed rate B-Axis: 18000Degrees/min
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 40kW
Speeds / ranges: 12000Rpm
ATC / revolver: 32
Coolant true spindle / Bar:40
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6200mm
Width: 2800mm
Height: 3200mm
Weight: 17000kg

Dealer name:

Mach4Metal Netherlands, Babberich
