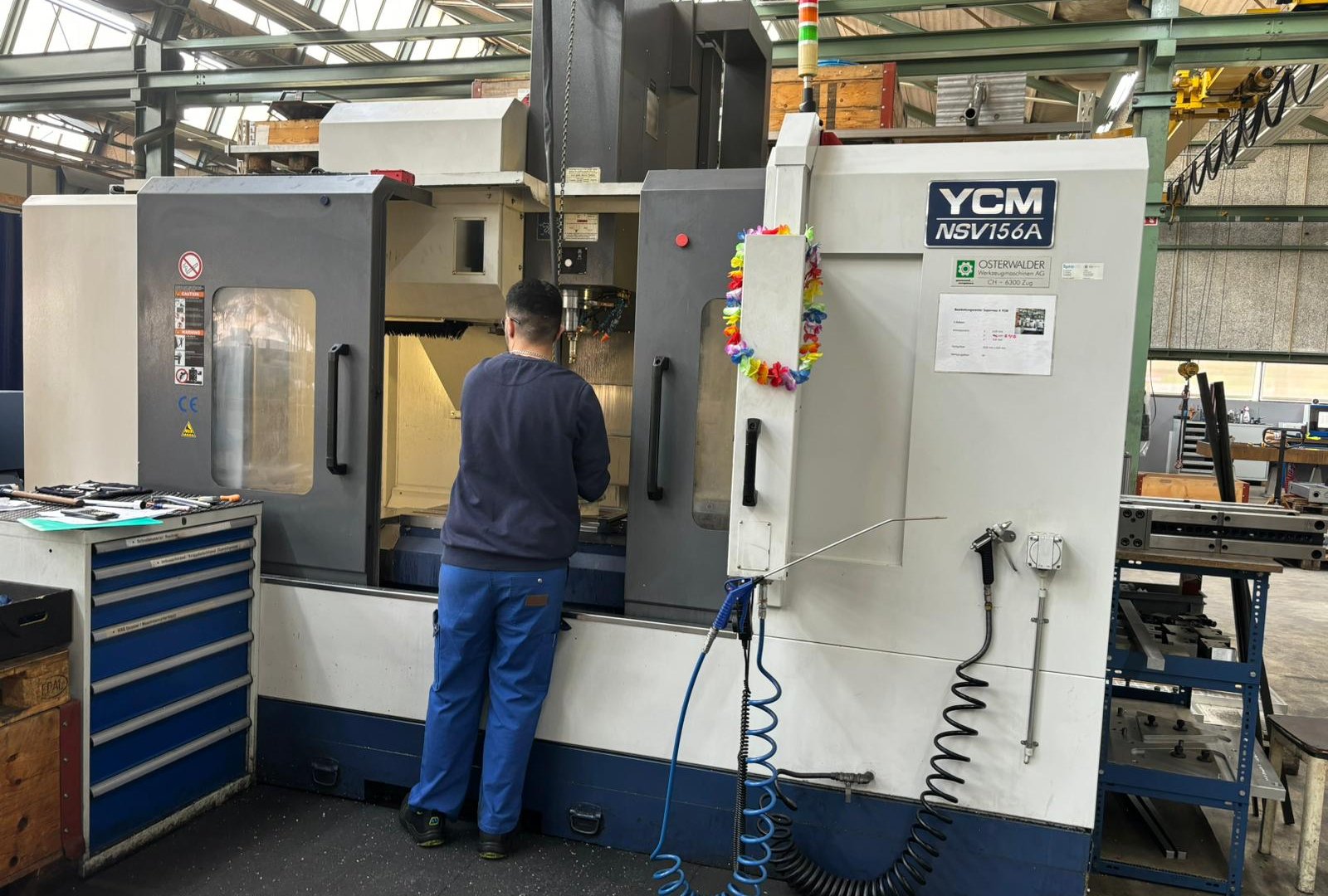

YCM, NSV 156 A, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:YCM
Model:NSV 156 A
YOM:2009
Location:Netherlands, BABBERICH
Price:On request
Stock No:8607
Control:CNC
ID:AS29776

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

3-axis CNC machine (VMC)
YCM - NSV 156 A
MACH-ID 8607
Make: YCM
Type: NSV 156 A

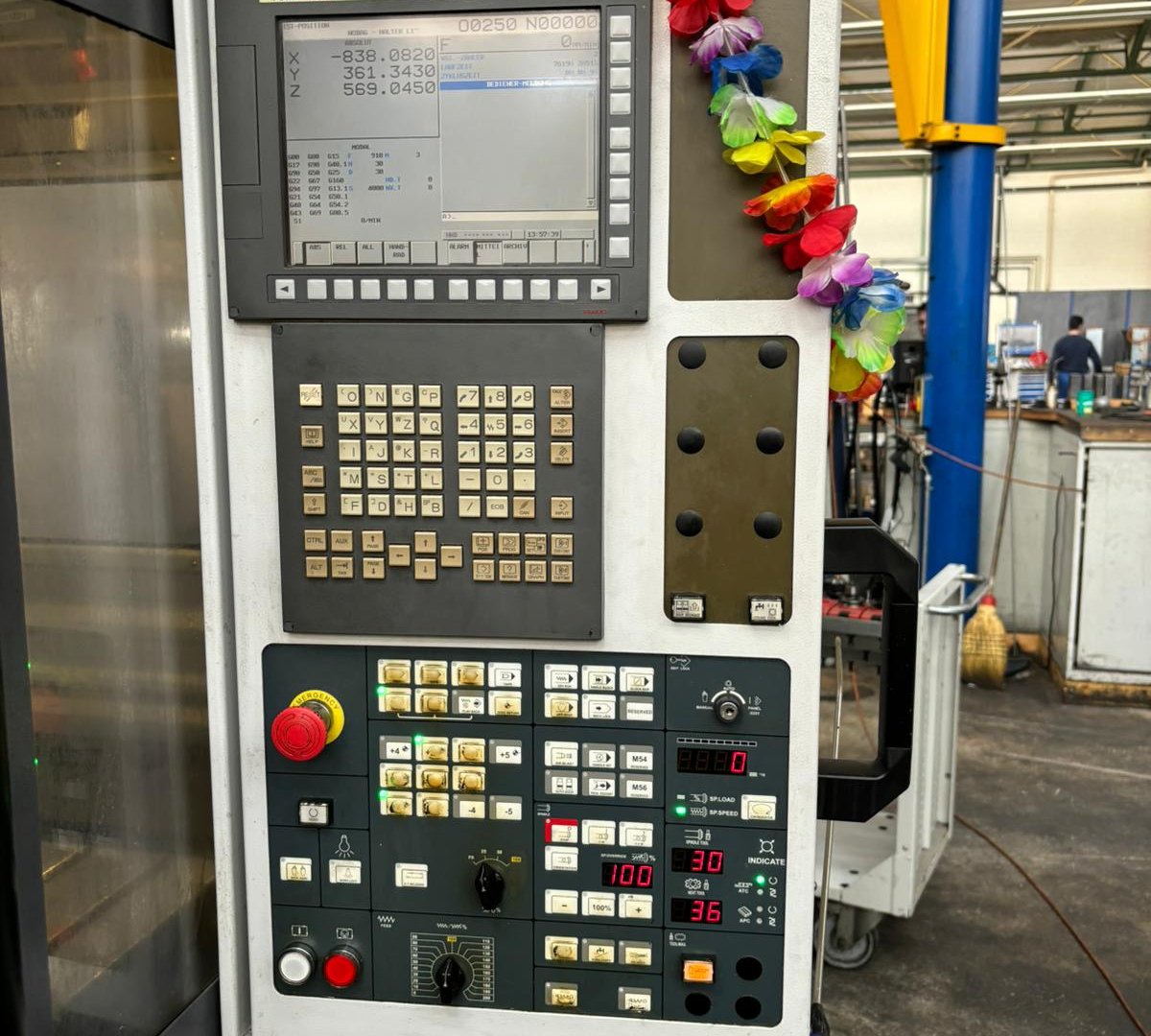

Control: FANUC MXP-200 FB
Year: 2009
X - Travel: 1530mm
Y - Travel: 650mm
Z - Travel: 610mm
Table Length: 1630mm
Table Width: 650mm
Table load: 1500
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Spindle Taper: 50ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 12000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: Yes
Length: 5800mm
Width: 3400mm
Height: 3400mm
Weight: 10000kg

Specifications:

3-axis CNC machine (VMC)
YCM - NSV 156 A
MACH-ID 8607
Make: YCM
Type: NSV 156 A
Control: FANUC MXP-200 FB
Year: 2009
X - Travel: 1530mm
Y - Travel: 650mm
Z - Travel: 610mm
Table Length: 1630mm
Table Width: 650mm
Table load: 1500
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Spindle Taper: 50ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 12000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: Yes
Length: 5800mm
Width: 3400mm
Height: 3400mm
Weight: 10000kg

Dealer name:

Mach4Metal Netherlands, Babberich
