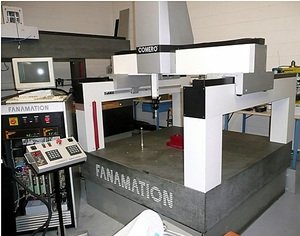

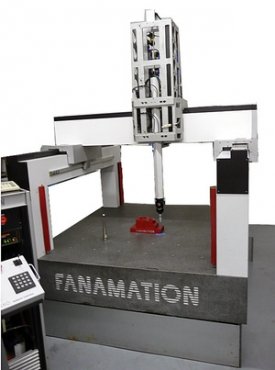

"FANAMATION" COMERO-404024 2011 REBILT COMPLETELY with new AXIOM CMM software. Equipped with Renishaw PH-9 or PH-10
Overhead gantry type CMM.Bridge and Ram are all ceramic for high accuracy.
Come with 1-year waranty and certificate.
Specifications:
SpecificationsMODEL : COMERO 404024
Measuring Range (X axis ) 40"
(Y axis ) 40"
(Z axis ) 24"
Work envelop 46" X 46" X 26"
Resolution 1 micron (0.000039”)
PERFORMANCE ACCORDING TO ANIS/ASME B89.11.12M-1990
Measuring repeatability 4µm (0.000157”)
Linear displacement accuracy 8µm (0.000315”)
Ball Bar performance 21µm (0.000827”/600mm)
Maximum Drive Speed Point to Point 508mm/sec
Probing speed 50mm/sec
Maximum acceleration 1G
Overall Dimensions L x W x H 60" x 60" x 116" 25,000 lbs.
Allowable Weight on Table 6,000 lbs.
