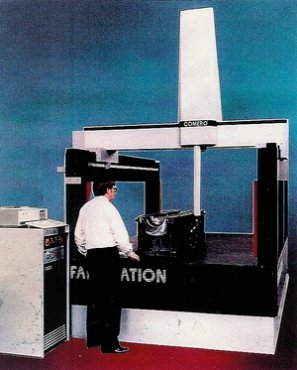

"FANAMATION" 2011 COMPLETELY REBUILD, WITH NEW AXIOM CMM SOFTWARE.
RENISHW PH-9 or 10, WITH 1-YEAR WARRANTY AND CERTIFICATE
X-100', y-40', Z-40" CROSS BEAM & RAM ARE CERAMIC FOR HIGH ACCURACY.
Specifications:
Specifications
Measuring Range (X axis ) 100”
(Y axis ) 40”
(Z axi 40”
Work envelop 120” x 46” x 46”
Resolution 1 micron (0.000039”)
Linear scale type Tape Scale
PERFORMANCE ACCORDING TO ANIS/ASME B89.11.12M-1990
Measuring repeatability 4µm (0.000157”)
Linear displacement accuracy 8µm (0.000315”)
Ball Bar performance 21µm (0.000827”/600mm)
Maximum Drive Speed Point to Point 508mm/sec
Probing speed 50mm/sec
Maximum acceleration 1G
Overall Dimensions L x W x H 120 ” x 60” x 126”
Machine weight 25,000 lbs.
Allowable Weight on Table 6,000 lbs.
