Billet Precision Cutting Machine is mainly used in forging works, comparing with other equipment, Billet Precision Cutting Machine is more high-efficiency, and the section slope is less than 3 degree.
Specifications:

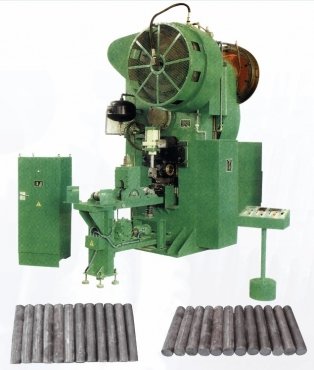

Introduction of Billet Precision Cutting Machine
Billet precision cutting machine is a kind of cold shearing machine, which is specially desired for cut steel bar for the closed die forging production line. With PLC control, automatic feeding, automatic cutting , automatic counting, automatic lubrication and overloading protection.
Features of Billet precision cutting machine:
1. PLC control
2. Reliable operation and easy maintenance
3. High efficiency cutting
4. Safety working
5. Energy saving
6. Low noise

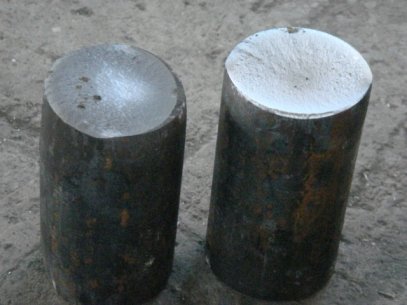

7. Section slope <=3 °; weight error within 0.5%
Parameters of Billet precision cutting machine:
Model: Q42-500
Pressing force: 5000 KN
Cutting frequency: 20 Num
Stroke length: 110 mm
Material tensile strength: 600 Mpa
Cutting diameter: 30-110 mm
Cutting length: 50-300 mm
Required air pressure: 0.5 Mpa
Main motor power: 45 KW
Machine weight: 22.5 Ton
