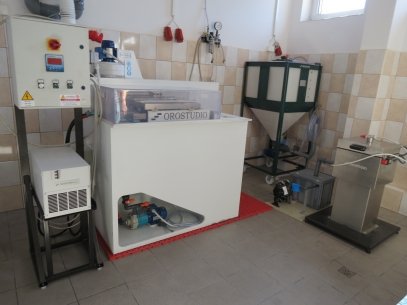

This is a complete and fully working electrolitic silver refining plant, used to recover silver from scraps. Details below.
Efficiency: about 22 kg/day (depends on purity of anodes)
This offer includes:
- refining bath 400l
- rectifier 200A
- control panel
- centrifuge
- vacuum pump and a container 20l
- cementation tank 300l (pump included)

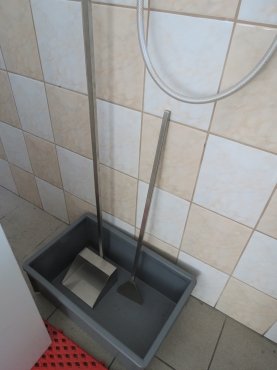

- stainless steel accessories

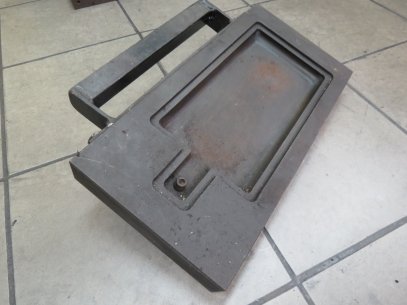

- anode ingot mould
- complete documentation
The plant is fully functional and ready to work. Each device was regularly cleaned and maintained. The aim of the whole set is to get silver of fineness not lower than 999 (99,9% purity and more).

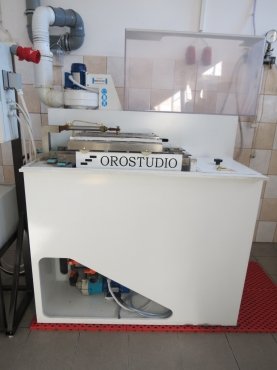

The bath is made of stainless steel and PVC. When connected to the rectifier and the control panel, it is being used to carry out the process of electrolysis.

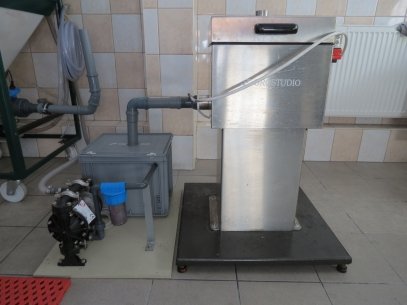

The centrifuge is made of stainless steel and was used to separate remains of liquid from recovered silver. It is equipped with a timer, a stainless steel basket and replaceable bags.

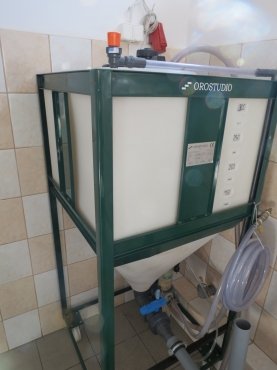

The cementation tank is made of PE and PVC set in a coated steel frame. It comes with a discharge pump to pour away liquids from silver leftovers, it also has a removable cover. Diameter of a bottom discharge valve is fi50.
If you have any questions please feel free to ask directly at scorab@scorab.pl.
Specifications:
REFINING BATH
Power supply: 380V/50Hz
Power installed: 3 KW
Capacity: 400 l
Dimensions: 1500 x 780 x 1600 mm
Weight: 220 kg
Manufacturer: OROSTUDIO S.R.L.
Model: ORS PEAg12

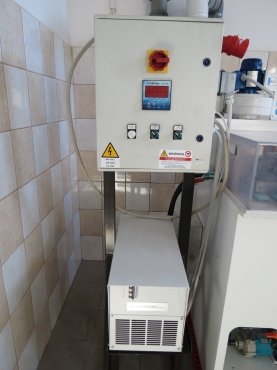

CONTROL PANEL
Dimensions: 495 x 205 x 405 mm
Manufacturer: Powerel S.R.L.
Model: DE10
RECTIFIER
Output current: 200A
Power supply: 380V/50Hz
Dimensions: 220 x 470 x 250 mm
Weight: 31 kg
Manufacturer: Powerel S.R.L.
Model: RP 00300 06
CENTRIFUGE
Maximum load: 15 kg
Basket diameter: 270 mm
Motor power: 0,37 kW
Power installed: 1,37 kW
Power supply: 380V/50Hz
Dimensions: 400 x 620 x 820 mm
Weight: 70 kg
Manufacturer: LM Studio S.R.L
Model: LM270/15
Additional: vacuum pump and 20 l container included
CEMENTATION TANK
Capacity: 300 l
Manufacturer: OROSTUDIO S.R.L.
Model: ORS CEM300
Additional: pump included
