For Sale Listings

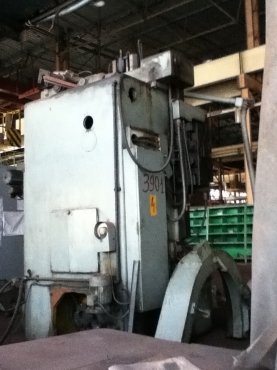

TITAN UMARO, SC-14SS, METALLURGY, METALLURGY
  • Condition:Used
  • Category:METALLURGY
  • Type:METALLURGY
  • Manufacturer:TITAN UMARO
  • Model:SC-14SS
  • YOM:-
  • Location:Ukraine, Kiev
  • Price:On request
  • Stock No:-
  • Control:Manual
  • ID:AS23305
Description:
Manufacturer: Titan Umaro
Model: SC-14SS
Year: 1982
Condition:Fully completed, main engine is present in the warehouse of the plant

-Weight 16100 kg
-Overall dimensions (LxBxH) 4060x4450x3900 mm
Specifications:
Specifications
Main Technical Characteristics:
-Max. turning diameter 1400 mm

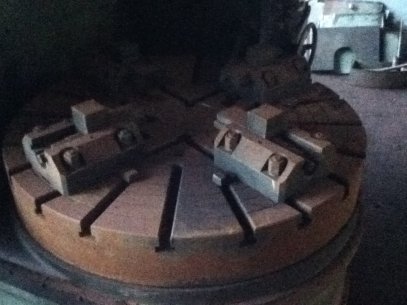

-Faceplate diameter 1200 mm
-Max. height of workpiece under traverse 1000 mm
-Max. weight of workpiece 6000 kg
-Main motor power 55 kW
-Table speed range 5 - 250 rpm
-Working and rapid feed range 0,05 - 5 mm/rot
-Max. travel of cross rail 800 mm
-Max. travel for right support slide 760 mm
-Max. travel of side head slide 650 mm
-Weight 16100 kg
-Overall dimensions (LxBxH) 4060x4450x3900 mm
Dimensions:
4060x4450x3900 mm
Weight:
16100 kg
