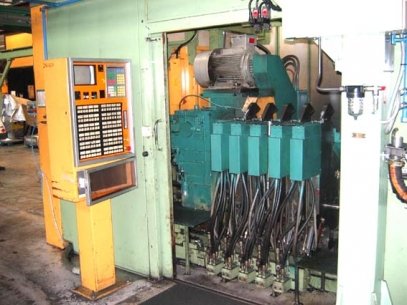

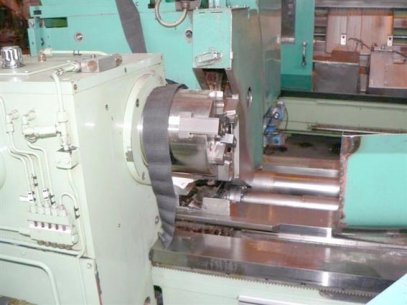

GFM FNF 10 Camshaft milling machine CNC, with one milling head, max. camshaft length 1320 mm, new in 1986
Specifications:
Max. longitudinal travel slide 1960 mm
Working range adjustable gripping device 650 mm
Max. working range milling slide 140 mm

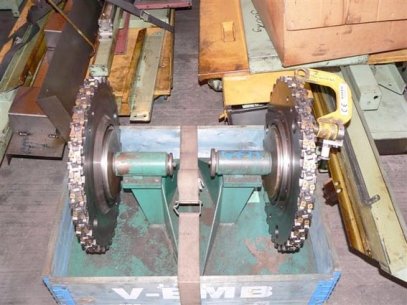

Milling head cutting diameter 500 mm
Milling head speed 89 l/min
Cutting speed 140 l/min
Number of long slide 1
Number of milling slide 1
Max. camshaft diameter 100 mm
Min. milling diameter 24 mm
Max. distance between centers 1370 mm
Max. machining length 1320 mm
Centre height 1200 mm
Rapid speed milling slide 5000 mm/min
Feed speed milling slide 0-1000 mm/min
Rapid speed long slide 8000 mm/min
Machine measurements L x W x H
