Heidenhain TNC 426 PB 5-axis control,

X-axis longitudinal column travel 4000 mm
Y-axis vertical 2000 mm
Z-axis ram cross travel 1200 mm
Working feeds 0-6000 mm/min
Quick feed 15000 mm/min
Spindle speeds 1-4000 rpm
Spindle taper ISO 50 DIN 69871

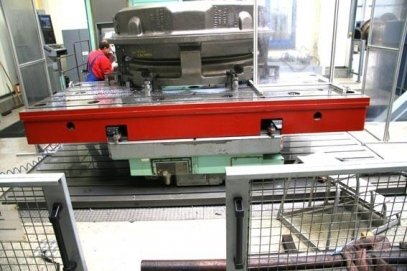

Table size 2000 x 2000 mm
Table load 15000 kg
ATC 40

Equipment:

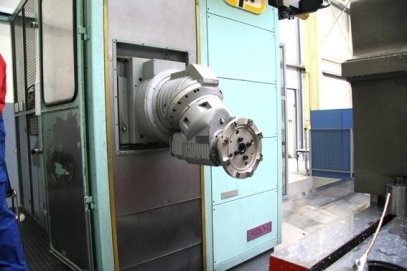

2 axis automatic stepless universal milling head

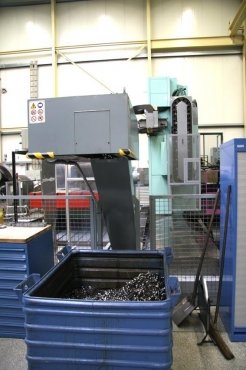

chip conveyer
floor plate 2,5 x 5 m
High pressure coolant trough spindle
Reinshaw prob type MP3
Electronical hand weel type HR410
Ethernet

-
