NICOLAS CORREA, PANTERA, GANTRY, MILLERS

Condition:Used
Category:MILLERS
Type:GANTRY
Manufacturer:NICOLAS CORREA
Model:PANTERA
YOM:2005
Location:Spain, Burgos
Price:On request
Stock No:-
Control:CNC
ID:AS20468

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

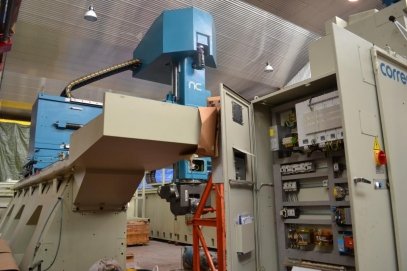

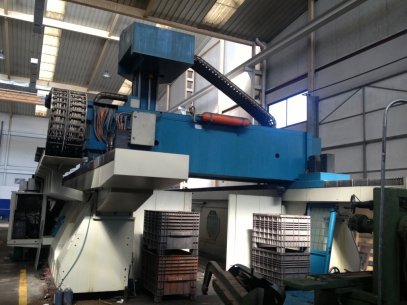

Gantry milling machine: CORREA PANTERA
Year: 2003
CNC SIEMENS 840-D
X axis traverse (mm): 14000
Y axis traverse (mm): 4470
Distance between columns: 3100 mm
Z axis traverse (mm): 1200 (220/1420)

Specifications:

Table dimensions: 14000x2500 mm
Number of slots: 10
T slots dimensions: 22 mm

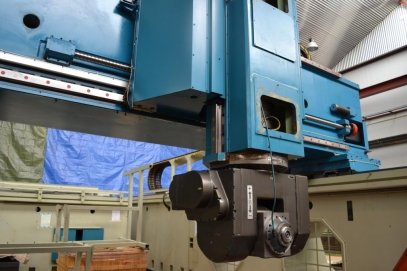

Head type: 5 Axis “C5C” Electrospindle 18000 rpm
Tool clamping system: Hydraulic
Taper nose: HSK 63
Spindle power: 25 kW
Speed range: 18000 rpm
Feed rate: 30000 mm/min
Rapid feed rate (X / Y , Z): 30000 mm/min
Max weight on table: 15000 kg
Machine weight: 135000 kg
Machine dimensions: 15000 x 8418 x 6033 mm

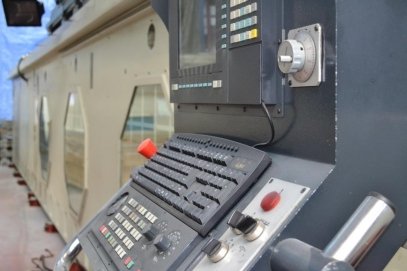

Electronic handwheel
Tool changer: 24 tools
Internal & external coolant
EC Guarding

Dimensions:

15000 x 8418 x 6033 mm

Weight:

135000 kg

Dealer name:

Nicolas Correa Service, S.A. Spain, Burgos
