Description:

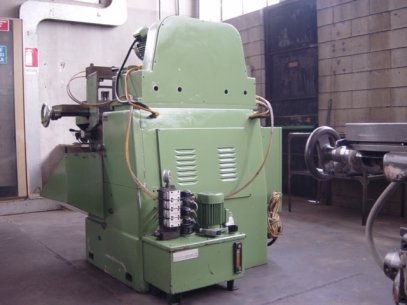

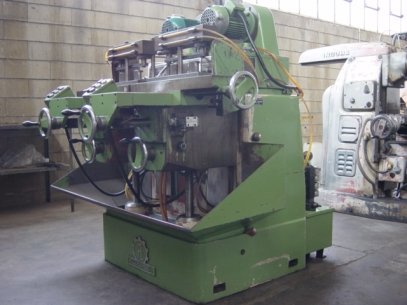

Automatic horizontal milling machine AURORA 4 spindles
Specifications:
Horizontal movement of milling spindle 0-100 mm, Max dia. milling cutter 30 mm, Cross traverse of tables 200 mm, Longitudinal movement of table 150 mm, Vertical movement of table 300 mm, Max. depth of groove 110 mm, Max quick approach 110 mm, No. spindle speeds 6, Range of milling speeds 250 - 500 - 800 - 1075 - 1600 - 2150, Head stroke with progressive regulation from 4 to 60, Dimensions of table 220 x 650 mm. Automatic traverse feed of table, Quick approach per minute 1500 mm, Working and progressive regulation per minute 0,05 - 1000 mm, Quick reverse 1500 mm, Positive infeed stop with finishing prestabilizer, Spindle attachment I.S.A. 40, Motor power HP. 7,25, Nett weight of complete machine 1750 Kg. Equipment: Motor, Starter switch, Vee belts, Motorised coolant equipment, Necessary handles and spanners, Cutter arbor
Weight:
1750 Kg
