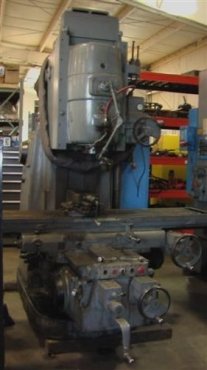

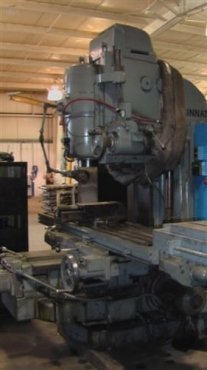

1976 Cincinnati Milacron model 420-16

Specifications:
Table Length 79 3/4"
Table Width 16 1/4"
Max. distance. Spindle to Table 22 1/8"
TRAVELS:
X Axis 42"
Y Axis 16"
Z Axis 6"
W Axis ( Knee) 16"
SPINDLE:
Spindle Tilt None
Spindle Taper #50
Feed drives 5 HP
Spindle Drive 20 HP
Minimum Spindle Speed 16 RPM
Maximum Spindle Speed 1600 RPM
Equipped With:
LONGITUDINAL & CROSS FEEDS ............ (32) 3/8 TO 90 IPM
VERTICAL FEEDS ........................ (32) 3/16 TO 45 IPM
75 IPM vertical rapids, 150 IPM horizontal rapids
Coolant
(2) Vises

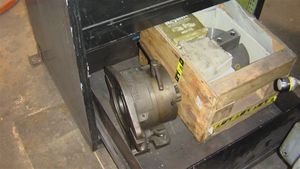

(2) Harford Indexing heads
Sine plate

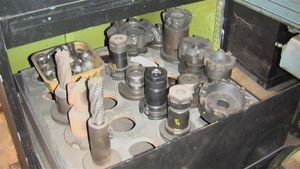

(12) milling holders and cutters
misc drills
constant voltage transformer

9.5'x12'

12,500 lbs
