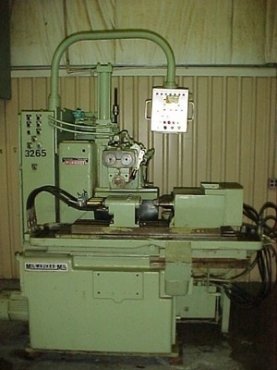

KEARNEY & TRECKER, 1224, HORIZONTAL, MILLERS
  • Condition:Used
  • Category:MILLERS
  • Type:HORIZONTAL
  • Manufacturer:KEARNEY & TRECKER
  • Model:1224
  • YOM:-
  • Location:United States, Katy
  • Price:-
  • Stock No:-
  • Control:-
  • ID:AS15542
Description:
SPECIFICATIONS
Table Size - 12x48"
Table Travel - 24"
Table Feeds-2.96 to 40 IPM
Head Feeds-.3 to 18 IPM
Tee Slots(3)for 5/8" Bolts
SpindleSpeeds-50to1500RPM
Spindle Taper-#40
Quill Adjustment-3"
Main Motor - 5 HP



EQUIPPED WITH
Spindle Reverse
Rise & Fall
Auto Cycle
Arbor Supports
3Head Indexer w/Tailstocks
Specifications:
BINNS & BERRY 40" x 171" Engine Lathe
Model: Trident 1000 Mfg: 1988

Swing over bed............................................... 40"
Swing over cross slide................................... 33 1/2"
Distance between centers.............................171"
Swing in gap................................................... 59"
Length of gap.................................................. 17.8"
Spindle speeds (variable, 3 ranges)............ 50 to 550 rpm
10 to 260 rpm
1.5 to 50 rpm
Feeds (70) Longitudinal ................................ .0007 to .070 ipr
(70) Cross........................................... .0005 to .050 ipr
Threads (90) Inch............................................ 1/4 to 112
(80) Metric........................................ 0.5 to 112
Power Top Slide Travel................................. 16"
Hole thru spindle............................................. 6" dia.
Spindle Mounting............................................ A2-15
Tailstock taper................................................ 6 Morse
Spindle Horsepower...................................... 30

Equipped With:

(1) Steady Rest "turn through" 1" to 10" dia range
(1) Steady Rest, (full enclosed) 1" to 12" dia range
36" Buck 4 jaw chuck, front
18" 4 jaw chuck, rear
Power feed to Top Slide (compound)
Rapid Traverse to Carriage and Cross Slide
3 Way Bed allows Carriage to pass by Tailstock
Inch/Metric threading
Tailstock, 2 speed, 8:1 ratio
Positive thread stop
Chip and coolant trough
Chuck guards
Manuals

Condition: Excellent
