Description:

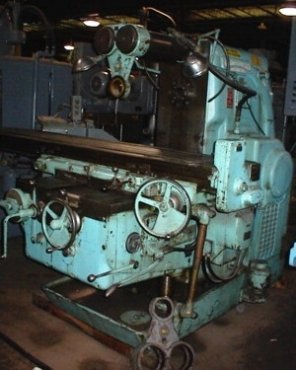

auto cycle knee powered all 3 axis, 42" x 16" x 21" travels, 25hp 220/440/3ph, heavy duty twin screw model, with supports
We are moving and are willing to accept reasonable offers due to the high cost of fuel. No reasonable offer will be refused on our large inventory of 2500 industrial machines!
Specifications:
Hill Acme No. 5 Iron Worker
Model No. 5, S# 541455, Foot pedal control, Punching: Max Dia. thru thickness - 1-1/4" thru 11/16" TK, Dia. thru max thickness - 1" thru 7/8" TK, Shearing: Flats - 1" x 4", 3/4" x 6", 5/8" x 10", Rounds - 1-7/8", Squares 1-3/4", Angles - 90° - 5" x 5" x 1/2", Angles - 45° Mitre - 4" x 4" x 3/8", Tees - 4" x 4" x 3/8", Coping: Sq. Notch - 3" x 3" x 1/2", 90° "V" Cope - 3" x 4-1/4" x 1/2", Motor 10hp 230/460v 3ph (wired 440v)
