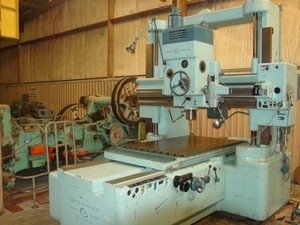

SPECIFICATIONS
Table-40.5 x 61.5"
Table Travel - 55"
Head Travel-40"
Max Dist tbl-spindle-39-3/8"
Quill Travel-12"
Feeds Drilling-inch/metric
Auto mill feeds-inch/metric
Space bet. Uprights-63"
Work Load Cap.-to 4500lbs.

EQUIPPED WITH
Traverse-table, head, elevation
31" Optical dividing table
17-3/4" Tilt rotary table
LOTS OF TOOLING

BINNS & BERRY 40" x 171" Engine Lathe
Model: Trident 1000 Mfg: 1988

Swing over bed............................................... 40"
Swing over cross slide................................... 33 1/2"
Distance between centers.............................171"
Swing in gap................................................... 59"
Length of gap.................................................. 17.8"
Spindle speeds (variable, 3 ranges)............ 50 to 550 rpm
10 to 260 rpm
1.5 to 50 rpm
Feeds (70) Longitudinal ................................ .0007 to .070 ipr
(70) Cross........................................... .0005 to .050 ipr
Threads (90) Inch............................................ 1/4 to 112
(80) Metric........................................ 0.5 to 112
Power Top Slide Travel................................. 16"
Hole thru spindle............................................. 6" dia.
Spindle Mounting............................................ A2-15
Tailstock taper................................................ 6 Morse
Spindle Horsepower...................................... 30

Equipped With:

(1) Steady Rest "turn through" 1" to 10" dia range
(1) Steady Rest, (full enclosed) 1" to 12" dia range
36" Buck 4 jaw chuck, front
18" 4 jaw chuck, rear
Power feed to Top Slide (compound)
Rapid Traverse to Carriage and Cross Slide
3 Way Bed allows Carriage to pass by Tailstock
Inch/Metric threading
Tailstock, 2 speed, 8:1 ratio
Positive thread stop
Chip and coolant trough
Chuck guards
Manuals

Condition: Excellent
