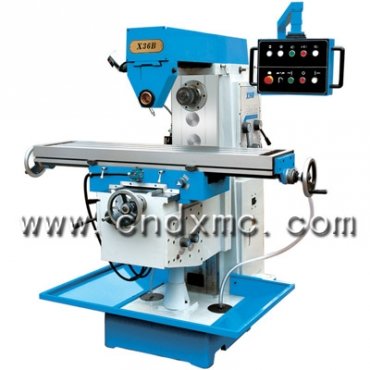

Knee-type Milling Machine

Specifications

X36B

Milling vertical shaft inner cone hole

ISO40

Difference from spindle axis to guideway(mm)

405

Slotting maximum traveling range (mm)

105

Inserts works as extreme breadth

16

Slotting stroke number of times (/minute)

≤80

Stroke number of times and transformation
progression

with variable speed and milling horizontalaxis series are the same

Horizontal axis turning

positive rotation

Tool rest rotation angle (°)

±90

Slotting tool cutter bar center to milling
machine guide rail distance

525

Horizontal axis center altitude

0-480

Table size(mm)

360*1500

Table travel(mm)

900*250

Overall dimensions(mm)

2300*2000*2000

Main electrical machinery (kw)

4KW

Feeding motor(kw)

1．5KW

Feeding speed

30、55、100
190、350、630
2000

Spindle speed

60-1800
