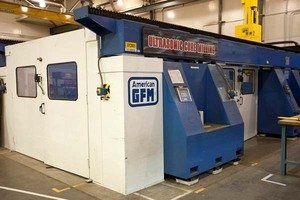

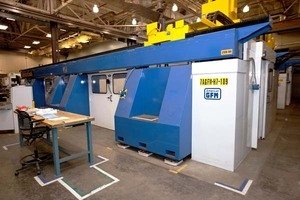

AMERICAN GFM Model RMT-50 Gantry Type Combination CNC 5-Axis Router/ 6-Axis Ultrasonic Cutting Machine. From Aerospace - Big Capacity Working Area 7'x 30', Speeds up 24,000 rpm, Excellent Condition, We have two identical machines available both came out of service on 5/29/12 and are ready to ship and go back into service. Machines were cutting Honeycomb core prior to removal from operation.
Specifications:
PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION:
AGE (APPROXIMATE) .............................. 2001
Excellent condition. Factory P.M. work done three times a year
and every fourth time the machines have been Laser Certified and
Volume Metric Measuring performed.
Precision 6-Axis Ultrasonic Cutting or 5-Axis Routing to
facilitate contouring and beveling of complex shaped parts on
carbon fiber, glass fiber, Kevlar, Prepreg and Honeycomb
materials. Both aluminum and non-metallic and cured carbon fiber
structures. In addition, light cutting of non-ferrous materials
can be accomplished.

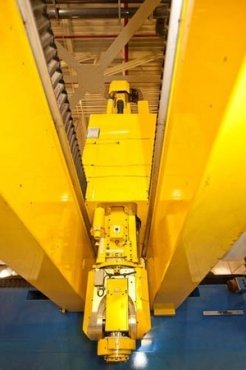

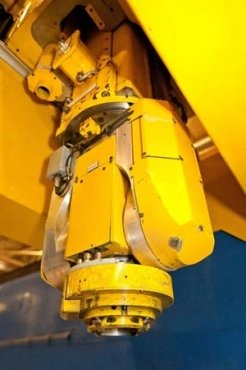

Mounted on the gantry are either the ultrasonic cutting head or
the router spindle, each of which operates independently.
Features of each are identical to stand-alone routers and
ultrasonic cutters.
CONTROL: AGFM CNC 6000

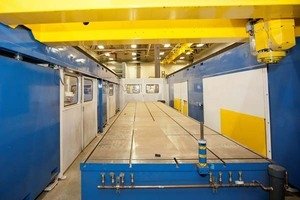

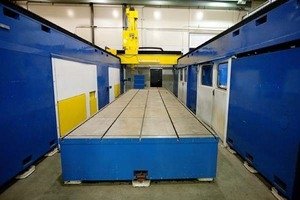

WORK TABLE SIZE: 7' X 30'
TRAVELS:
X-AXIS: 9000MM / 354.33"
Y-AXIS: 2000MM / 78.74"
Z-AXIS: 1200MM / 47.24"
A-AXIS: +/- 110 DEG.
C-AXIS: +/- 380 DEG.
FEED RATES:
X-AXIS: 0 TO 25 M/MIN / 984 IPM
Y-AXIS: 0 TO 20 M/MIN / 787 IPM
Z-AXIS: 0 - 15 RPM
C-AXIS: 0 - 30 RPM
SPINDLE SPEEDS: UP TO 24,000 RPM
SPINDLE TAPER: HSK 32
TOOLS: 12 STATION ROTARY
