Universal Milling machine / Machining Center
- optional as 5-Axis-version -

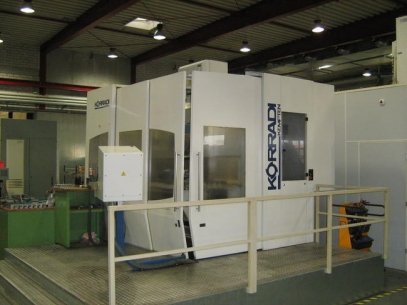

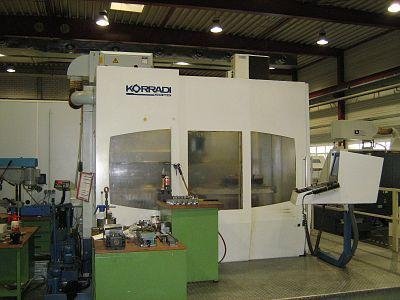

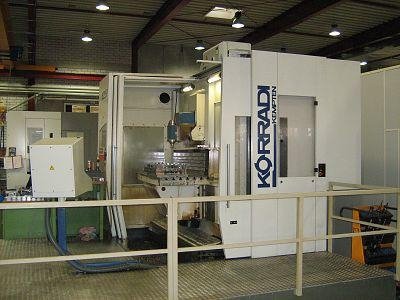

KORRADI, VH 1000 CNC
new 1997
Control Heidenhain TNC 426 CB
Workrange: 1000 x 600 x 600 mm
main motor: 15 kW
Equipment:

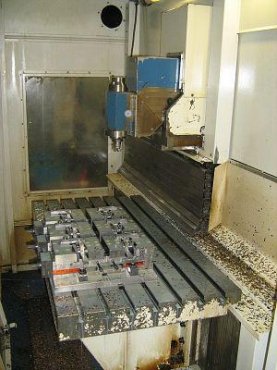

Table 1300x700, 7 T-sluts 18 mm, distance 90 mm.

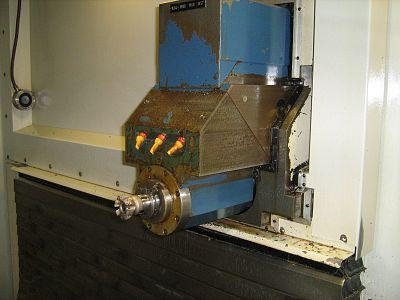

automatic milling-head
vertical / horizontal,
internal cooling,
20-station tool-changer,
electronical handweel,

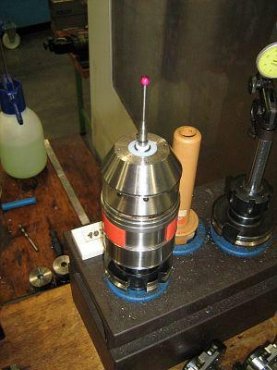

Infrared Probe
preparation for 4. Axis
preparation for oildust-absorber, splashguard cabin
machine-dokumenation
Remarks:
Spindle SK 40,
speedrange 40-6000 min-1,in 2 gear-steps stepless adjustable.
feedrate 1-4000 mm/min,
rapid feed 10 m/min,
total junction 28 kVA
measurement ca. 5 x 5 m,
weight ca. 7 to.
optional available:
CNC Dividing Head /
2-axis Rotary Table
Make WALTER,
Type TANIH2S 125 NEG,
diameter ca. 125 mm.
