Racing:
Longitudinal x 20000
VERTICAL y 3200
Cross Z 1500
rapid 25 m / min
spindle motor 32 Kw
ISO 50
24360x4050x5500 dimensions mm
approximate weight 75000 kg

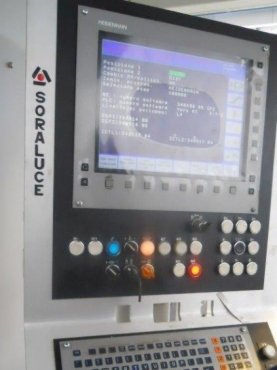

CNC Heidenhain iTNC 530
ZF Transmission Range

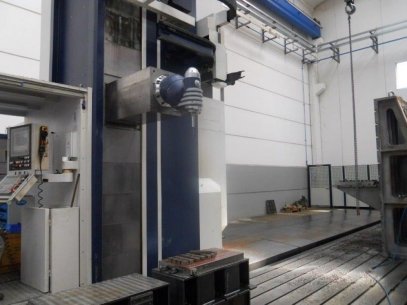

Bi-rotary head automatic indexing 2.5 ° ahead and behind
3000 rpm
the head is prepared for adduzzione to spindle center
Tool storage to 100 seats with arm exchange tool horizontal vertical
Rototraslante table from 2000x2000 mm positioning thousandth capacity 20 ton
traverse table W = 1500 mm

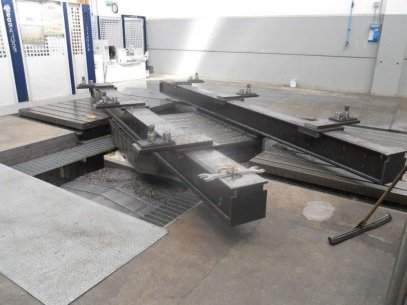

Floor work from 15000x2500x300

Floor work from 3000x2500x300

# 2 teams from 3000x1000x1200 mm

Marposs laser probe for the measurement of the tools, diameter and length cutting
Receiving system to probe Marposs MIDA (excluded)
with transmission of signals via radio for the measurement of the workpieces

-
