Description:
Machine equipped with: Proto-Trak AGE-3 controller, clamp kit, power draw bar, glass scale option, coolant mister option, 4 pieces of tooling, 220V 3 ph, manuals, 31" X axis travel, 17" Y axis travel, 23.5" Z axis travel, 5" quill travel, NMTB-40 Spindle taper, 70-3950 RPM speed range, Approx. machine weight- 4,100 lbs.
Specifications:
Proposal for Machine #9165
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

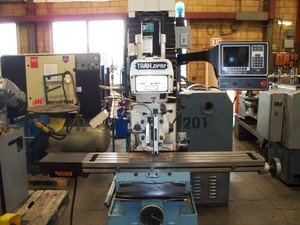

1-Used Proto-Trak CNC Bed Type Milling Machine
Model Number: DPM3
Serial Number: 97-3079
Mfg:
Specifications:
Table size 10 x 50
Travels X,Y, Z 31, 17, 23.5
Quill travel 5”
Spindle taper NMTB40
Spindle speed range 70-3950
Spindle center to column 19”
Spindle hp 3hp
Work piece weight 1320 lbs
Height of table 38”
Max. height head up 95”
Min. height head down 85”
Front print of machine 24 x 44
Dimensions
Approximate weight 4,100 lbs
Machine Equipped With:
Proto-Trak A.G.E 3 controller, clamp kit, power draw bar, glass scale option, coolant mister option, 4 pcs of tooling, 220V 3ph, manuals
Price, FOB Orange City $18,950.00
Replacement cost $36,000
From school in excellent condition
Dimensions:
71" x 66" x 85" H
Weight:
4100 lbs.
