Maximum load on table: 1814 kg
Spindle taper: SK 40 DIN 69,871th
max. Speed: 7500 min-1.
max. Torque: 102 Nm (belt).
max. Performance Spindle motor: 14.9 kW
Rapid X axis 13.7 m / min.
Rapid Y + Z axis: 15.2 m / min.
max. Tool diameter 76 mm / free Nebenplatz 150 mm.
Tool change time 2.8 s. .
color LCD screen 15-inch
USB interface. 1 MB program memory
Portable control panel with LCD screen
Machine's weight about 9,600 kg.
Year: 12.2007
tool magazine 40 stations
air blowing for dry machining
RENISHAW and Werkstuecktastsystem tool
spindle orientation, macro and coordinate system rotation / scale
Preparation for the use of a 4th axis
Preparation for the use of a 5 ° axis
Hours: ca. 17,500 hours
hours worked: approximately 5000 hours

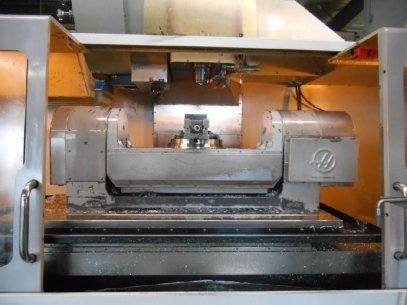

HAAS 5-axis rotary table TR 310
Couple A and B axis: 407 Nm
B-axis (axis of rotation of 360 degrees) braking torque at 6 bar: 678 Nm.
A-Ache (axis of rotation + - 120 degrees) braking torque at 6 bar: 1356 Nm.
Spannflaechendurchmesser 310 mm (6 T grooves to 14 mm)
max. workpiece weight 227 kg
