Victor UH-1 Universal Horzontal Mill, 9"x41" table, 70-1470 RPM, Vert Head

General Specifications As Per Brochure:

Spindle speed (6 speeds) : 81-1470 RPM
Spindle Taper: NT #40
Spindle Center To Table: 12"
Spindle Center to Over Arm Bottom: 5"

Table
Working Surface of Table: 9" x 41"
Longitudinal Travel" 22"
Transver Travel: 10"
Vertical Travel: 17"
Range of Longitudinal Feed Speed: 17-246 IPM
Range of Longitudinal Rapid Speed: 2056 @ 60% 2056); 1713 @ 50%
Table Will Swivel (R & L): 90 Degrees
Motor
Horizontal Milling: 3HP

Dimensions (Approx.): 54" x 46" x 68"

Equipped with:

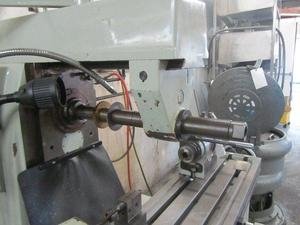

(2) Arbor Supports with Arbor

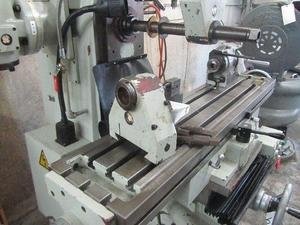

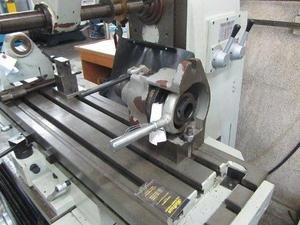

Workhead (5C Collet adaptor) and tailstock

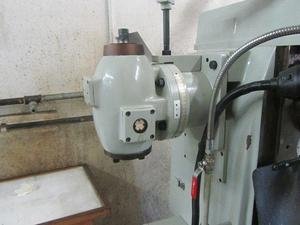

Universal Vertical Head
Work Light
Misc additional items

(Located in So. Cal)
