rebuilt by manufacturer in 2001, still under power in plant, 7 additional Boring & Milling Heads, table hydrostatic, heavy duty machine
Specifications:

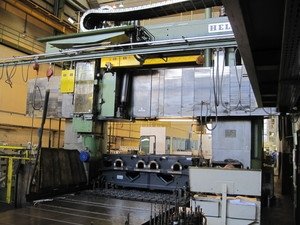

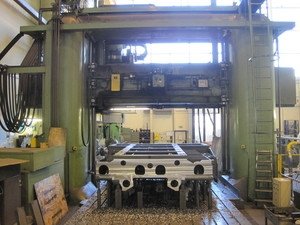

CNC Plano Milling Machine
Maker : Heller
Type: LFS 240

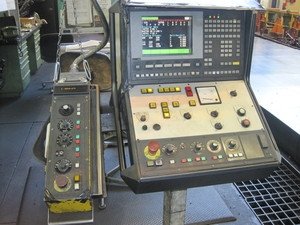

Control: Siemens 880 M
Year of Manf.: 1974/modified and retrofitted 2001
Specifications:
Table 1 5000 x 3200 mm
Table 2 5000 x 3200 mm

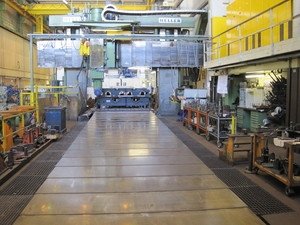

Table joint together 10800 x 3200 mm
Distance between column 4100 mm
Max. milling height 2700 mm
Milling Spindle Power 75 KW
Milling Spindle dia. 240 mm
Spindle Taper ISO 60
Travels:
X 13800 mm
Y 5630 mm
Z 800 mm
W 2300 mm
Max. Table load 90 to
Cross rail Elevation, Vert. 2300 mm
Feed X,Y 1 - 3000 mm/min
Rapid travel 6000 mm/min
machine dimensions 20.5 x 6.1 x 5.4 m
weight of the machine approx. to
Accessories/Features:

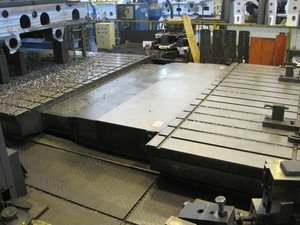

- 2 joinable tables of 5000 x 3200 mm each
- The machine is being used by manufacturer, Heller, at their plant and therefore periodical modification and well maintenance.
- Table travel : hydro-static
- Elevation of Cross rail : Roll Bearings

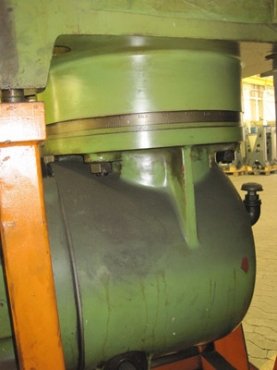

- 7 Additional Milling/Boring Heads
