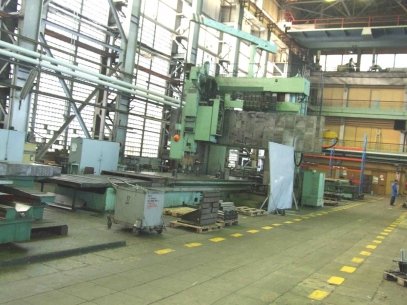

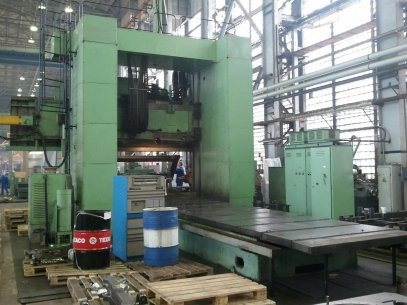

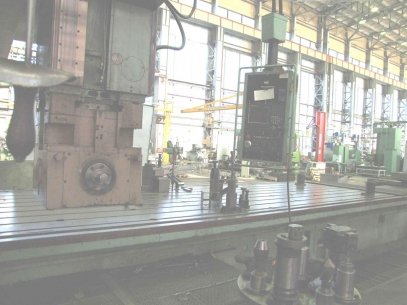

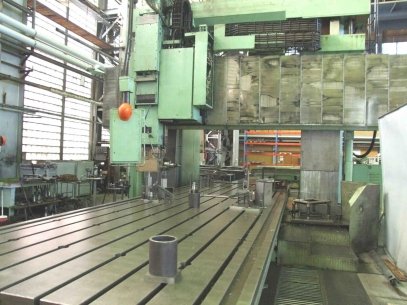

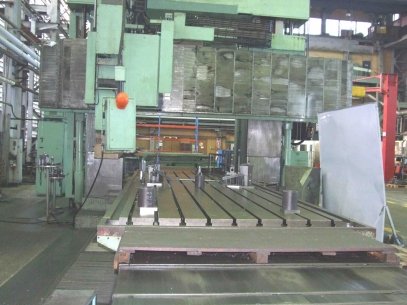

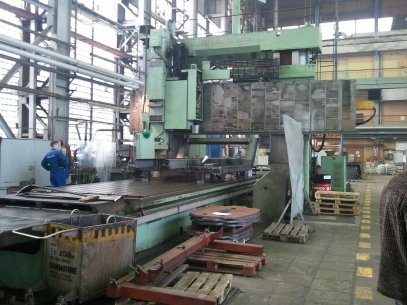

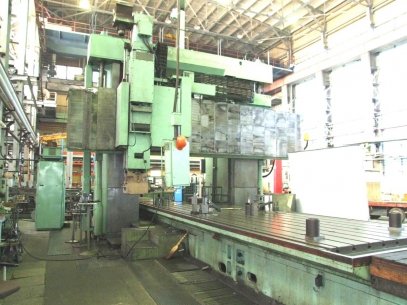

Plano milling machine ULYANOVSK 66K25F4 with CNC. Machinery is in working condition.
Machinery has vertical and angle milling heads. Also it has ball screws for X and Y axis
Specifications:
Table size: 2500x8000 mm
Distance between columns: 2990 mm
Movements:
-Slider (Z): 1000 mm
-Spindle head (Y): 4000 mm
-Table (X): 8000 + 700 mm
-Cross bar (W): 1710 mm
Spindle speed range: 5...2000 rpm
Limits of feeds:
-X axis: 2...10000 mm/min
-Y axis: 1...10000 mm/min
-Z axis: 1...10000 mm/min
Speed of rapid movement:
-X axis: 10000 mm/min
-Y axis: 10000 mm/min
-Z axis: 10000 mm/min
-W axis: 1...1200 mm/min
Max table load per one meter: 12000 kg
Main motor power: 55 kW
Machine overall dimensions:
-Length: 21700 mm
-Width: 7800 mm
-Height: 7080 mm
Machine weight: 126 ton
