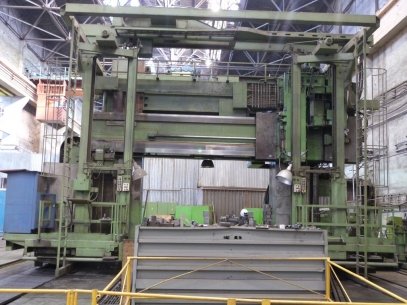

Total length (foundation) ~ mm 24165
Total width ~ 11 750 mm
Height (top of the foundation) ~ 5750 mm
Width of the clamping plate: 3600 mm
Distance between the columns: 4600 mm
Total length of the clamping plate: 16000 mm
Distance between the clamping plate and the front end of the spindle: mm (max 3500) (min.100)

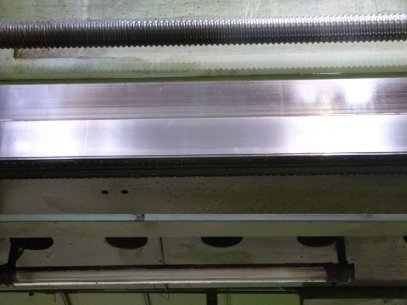

Travel ranges

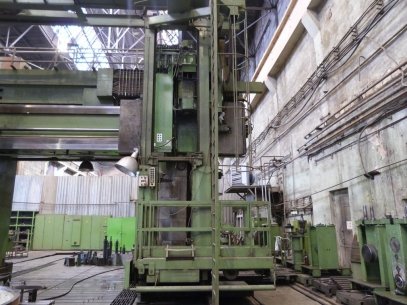

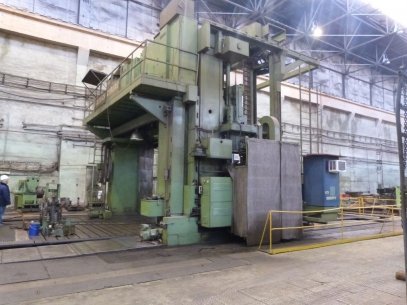

Portal ~ 13500 mm
Cross-Bar - 2450 mm

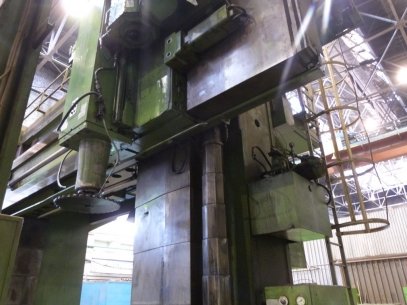

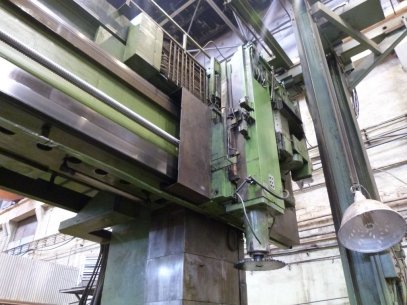

Saddle milling slide - spindle saddle, vertically - 1000 mm
Saddle milling slide - spindle saddle, horizontally - 5400 mm
Travel movement
Portal - manually
High Speed - 10000 mm / min.
Feeding - 2-10000 mm / min.
Slow Speed - 5 mm / min.

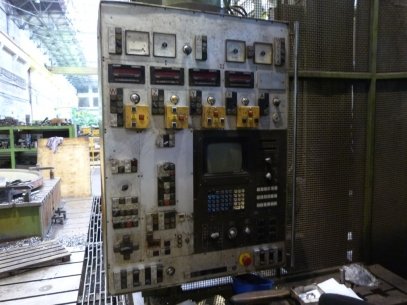

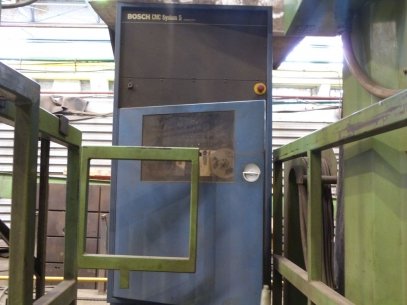

Portal - NC:
Feeding - 0-10000 mm / min.
Milling slide's lower saddle - manually:
High Speed - 6000 mm / min.
Feeding - 2-6000 mm / min.
Slow speed - 5 mm / min.
Milling slide's lower saddle - NC:
Feeding - 0-6000 mm / min.
Milling slide's spindle saddle - manually:
High Speed - 3000 mm / min.
Feeding - 2-3000 mm / min.
Slow speed - 5 mm / min.
Milling slide's spindle saddle - NC:
Feeding - 0-3000 mm / min.
Cross-bar - manually:
High Speed - 2000 mm / min.
Feeding - 2-2000 mm / min.
Slow speed - 5 mm / min.
Cross-bar - NC:
Feeding - 2-2000 mm / min.
