X – Travel 7000 mm
Y – Travel 3300 mm
Z – Travel 2000 mm
W – Travel 60 mm

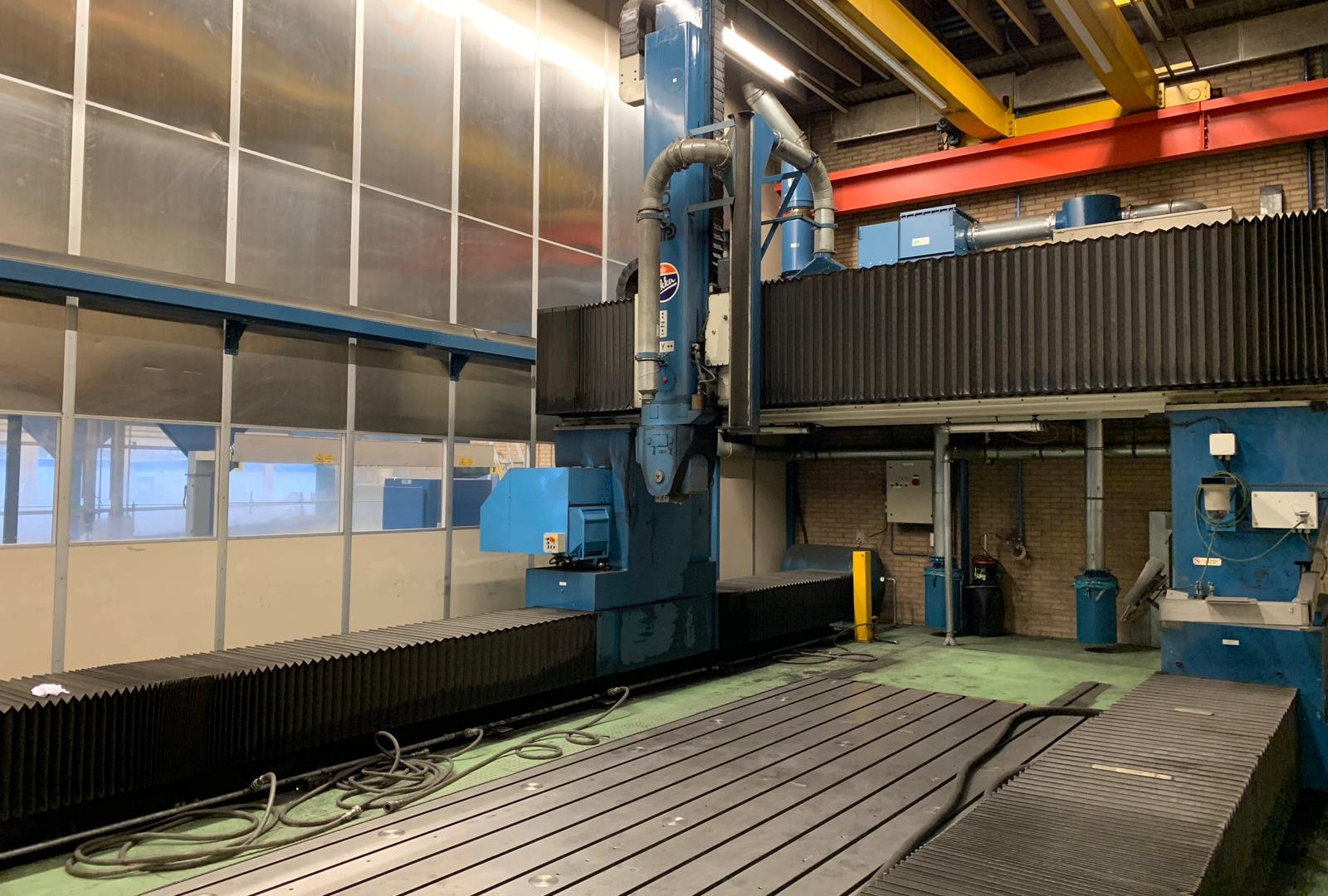

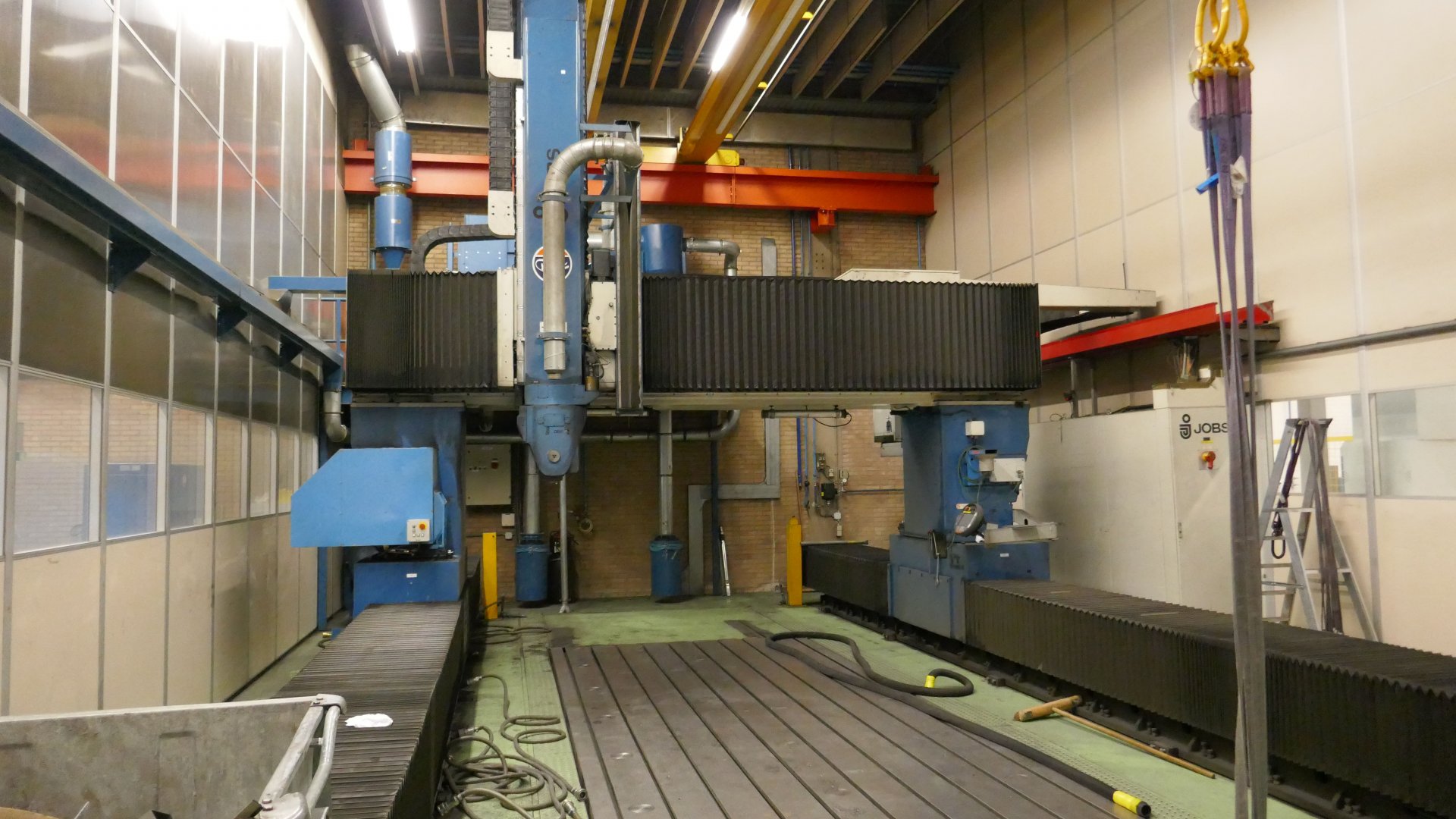

Portal travel column

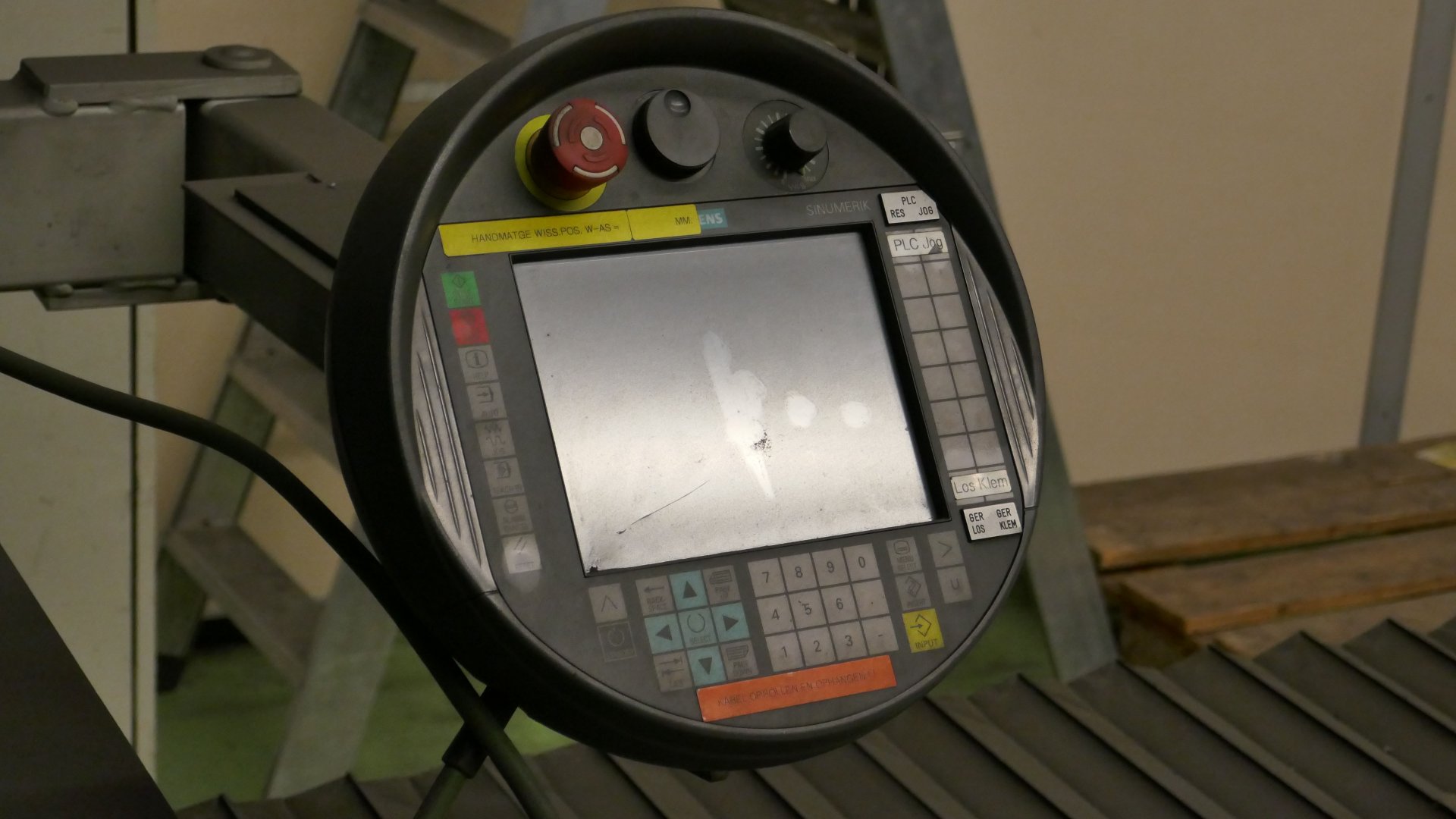

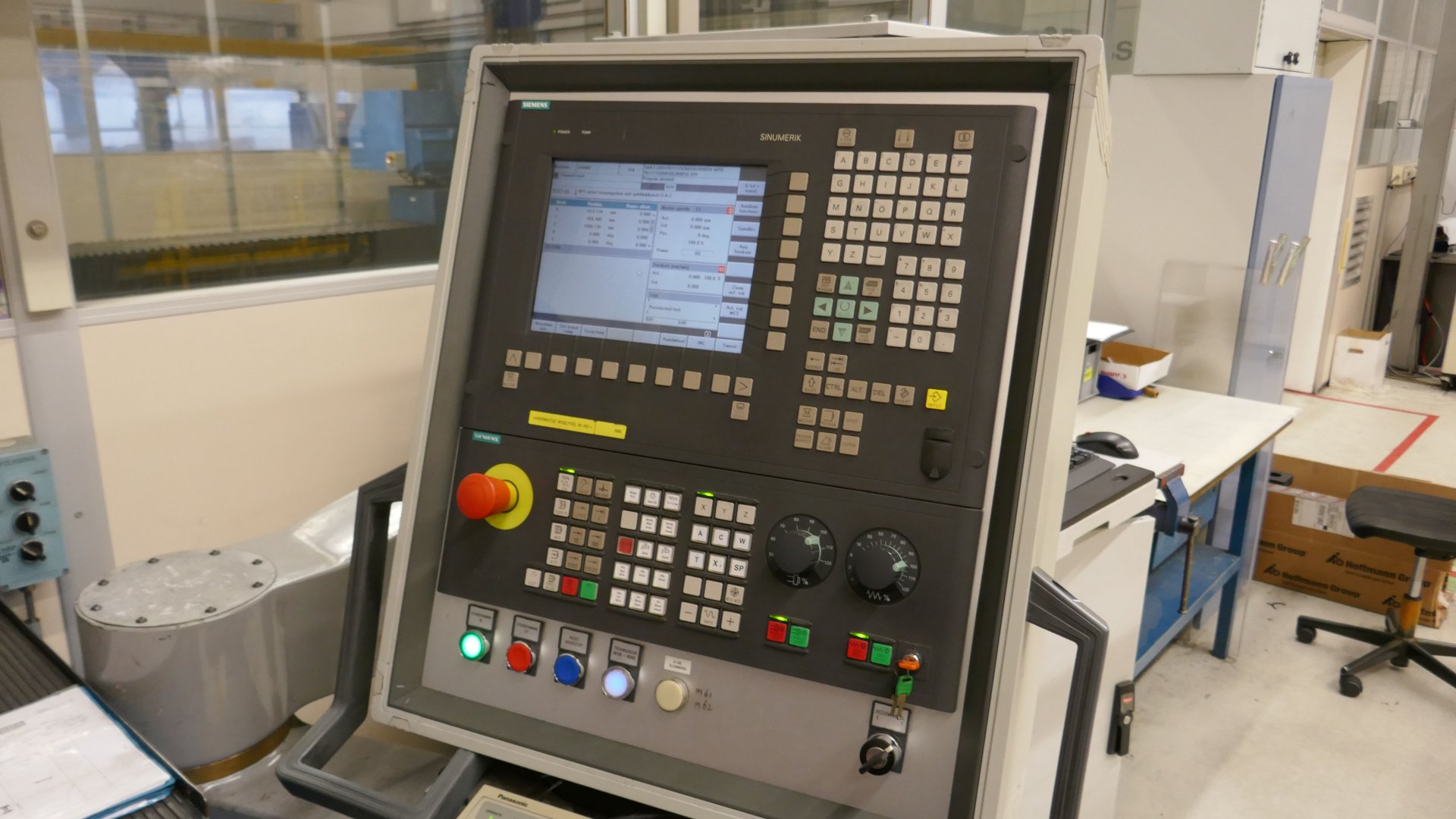

Controll Siemens 840D + Remote
Table Length x Width 7000 x 2500 mm
Table load in 15.000 each M Kg
Spindle Taper Sk 30
power on spindle7.5 kW
Spindle speeds / ranges 20.000 Rpm

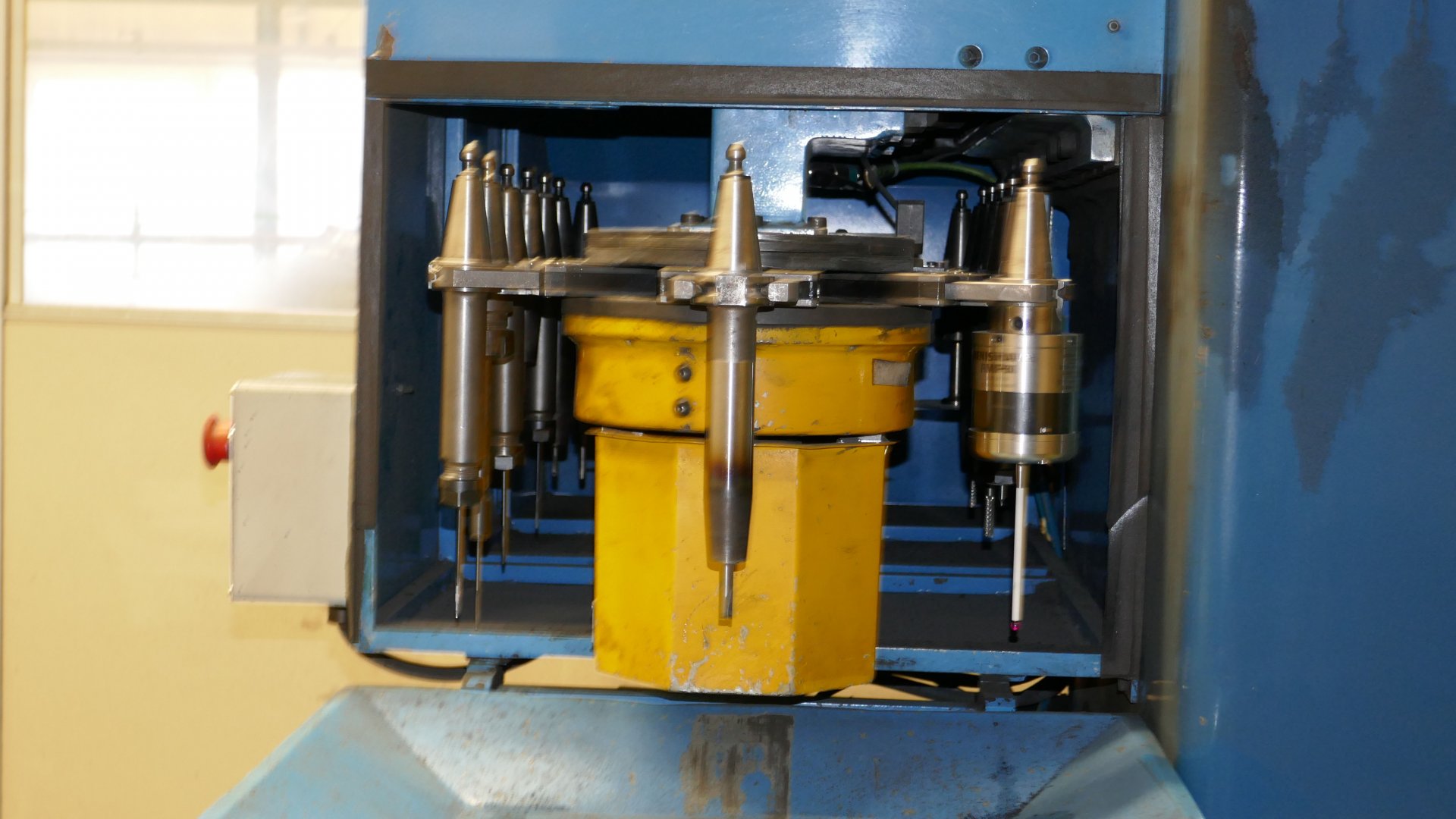

ATC tool changer16
Number off controlled axis 5
CNC Automatic milling head / Gr.200 / 800 Gr
Distance between columns 3960 mm
Specifications:
X – Travel 7000 mm
Y – Travel 3300 mm
Z – Travel 2000 mm
W – Travel 60 mm
Portal travel column
Controll Siemens 840D + Remote
Table Length x Width 7000 x 2500 mm
Table load in 15.000 each M Kg
Spindle Taper Sk 30
power on spindle7.5 kW
Spindle speeds / ranges 20.000 Rpm
ATC tool changer16
Number off controlled axis 5
CNC Automatic milling head / Gr.200 / 800 Gr
Distance between columns 3960 mm
