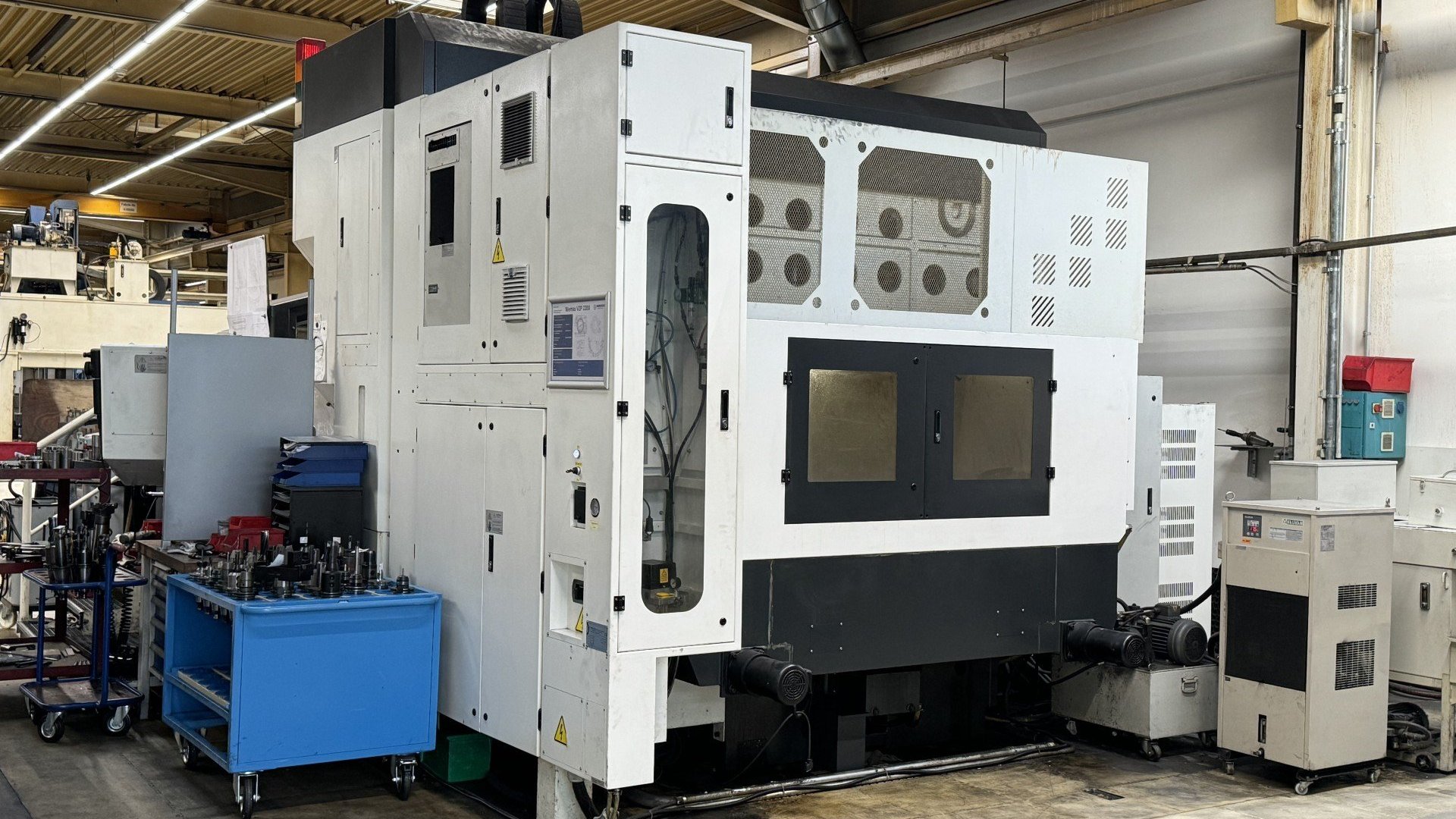

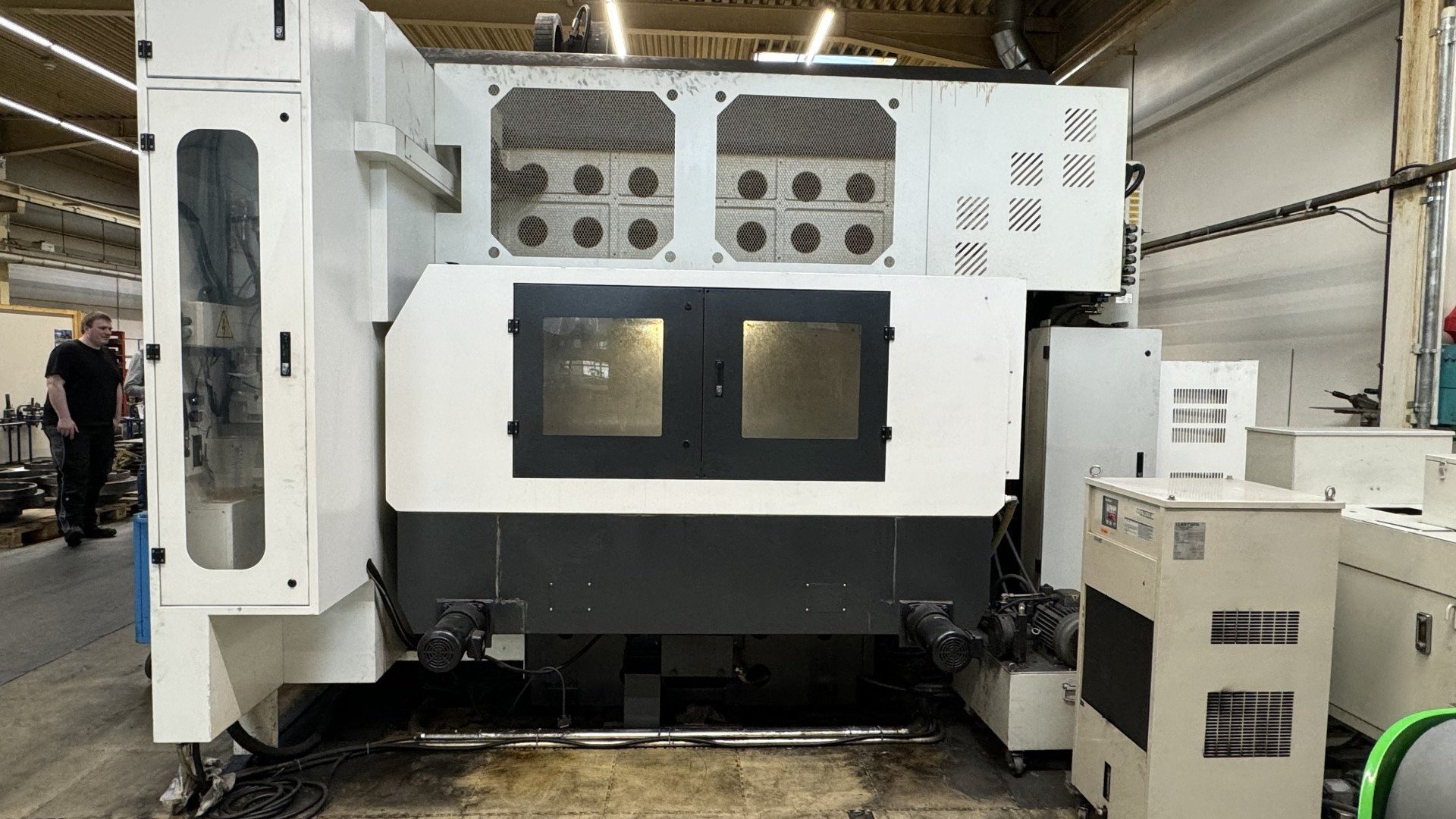

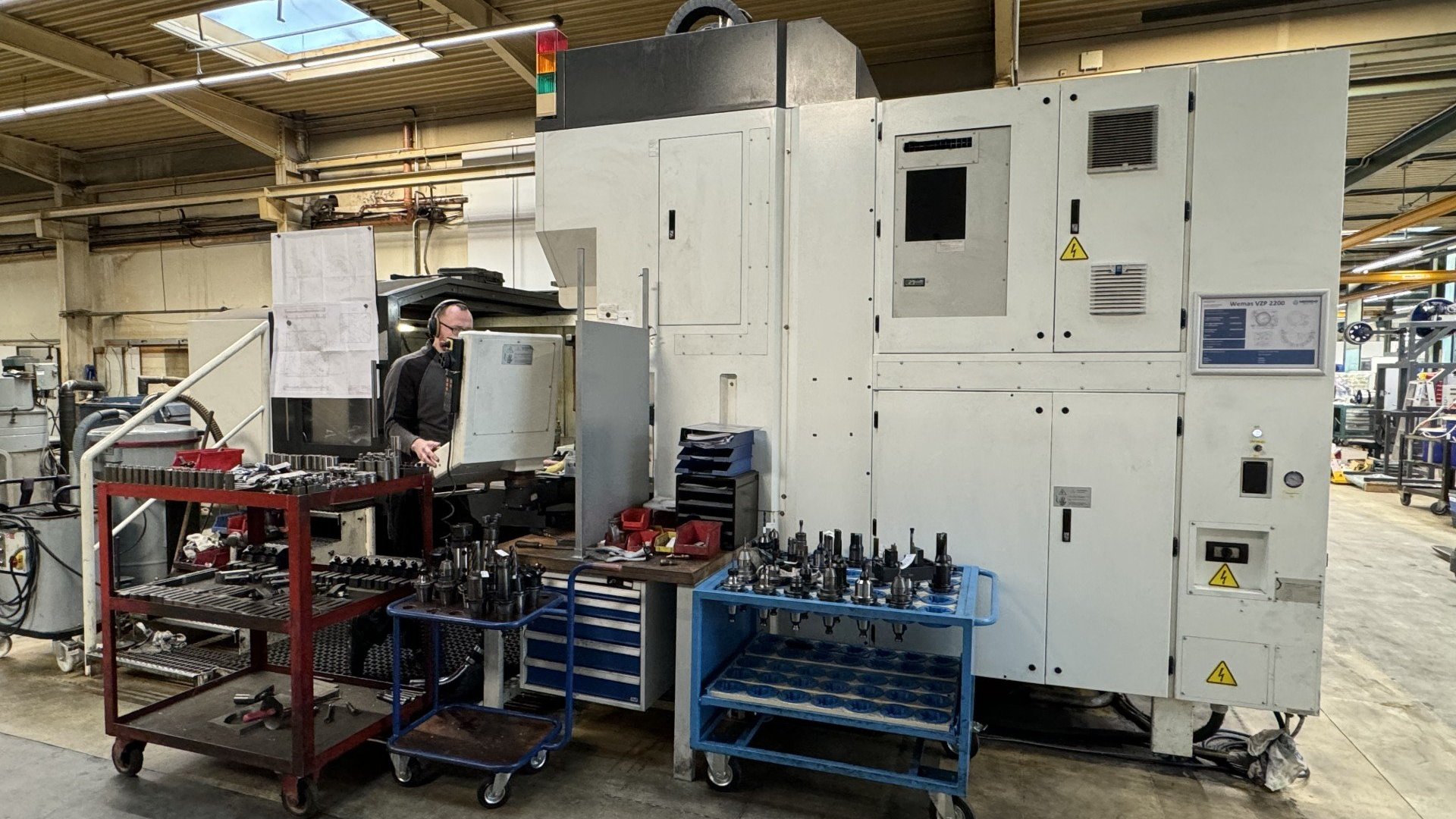

Portal milling machine

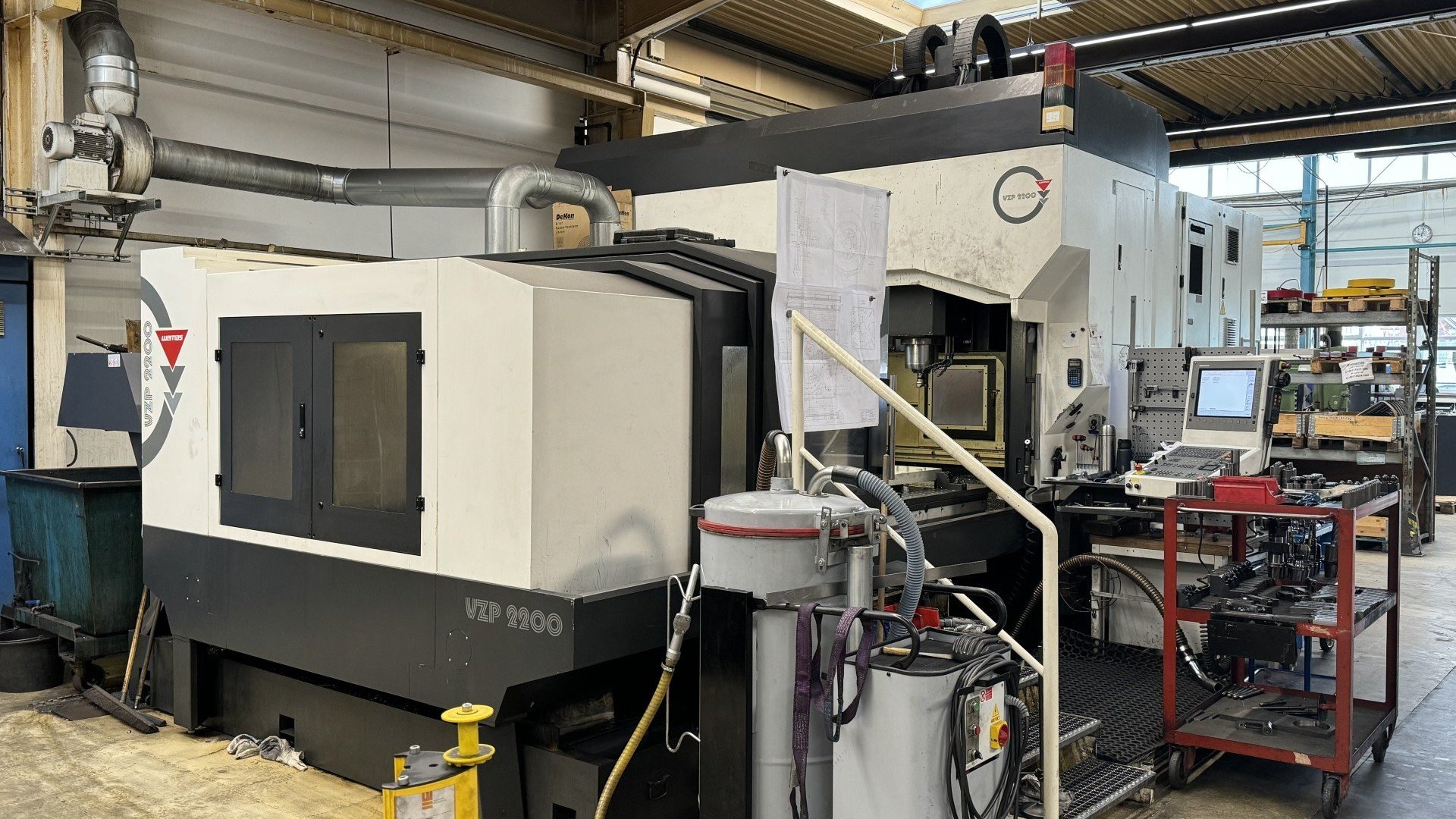

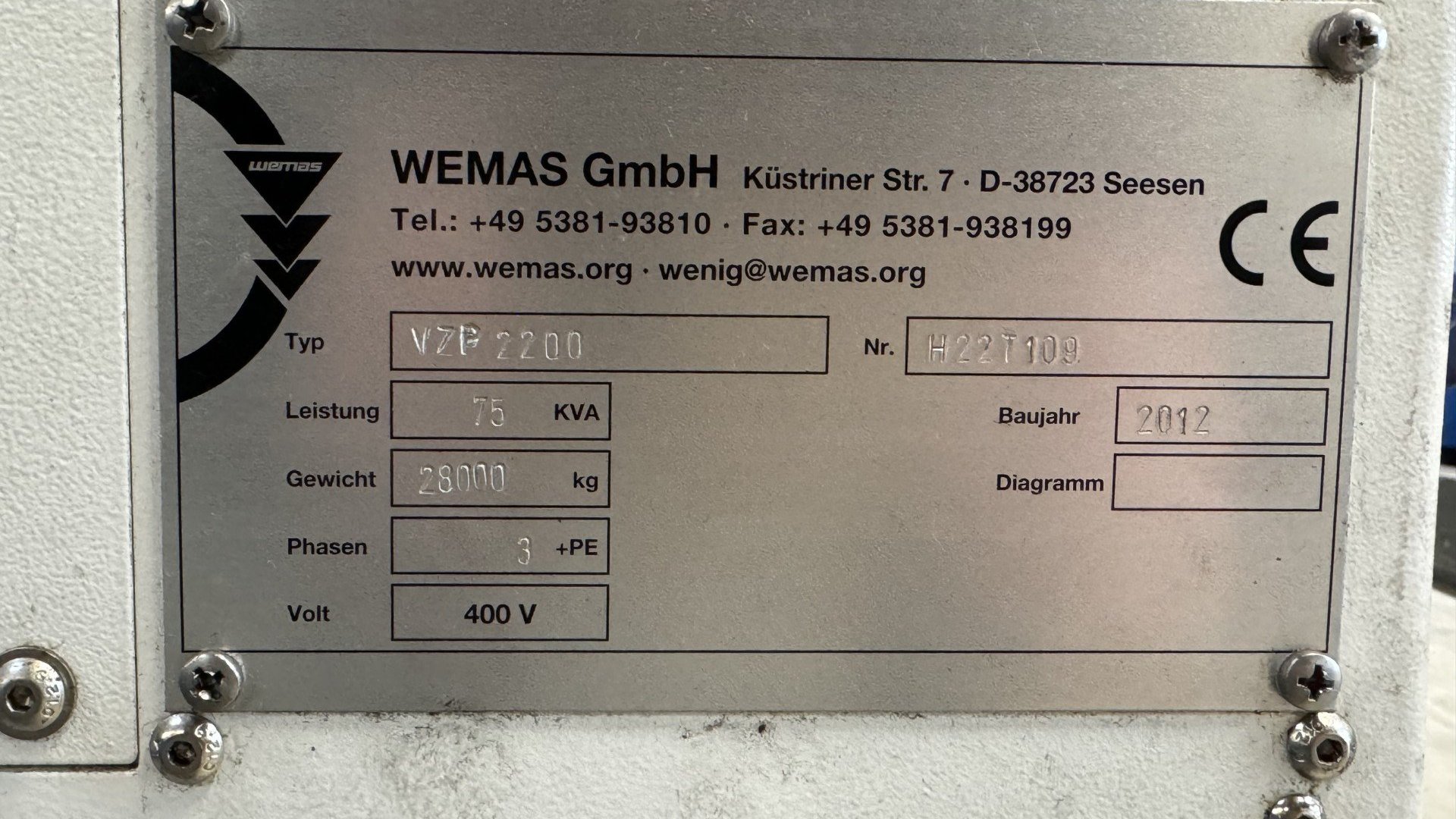

Wemas - VZP 2200

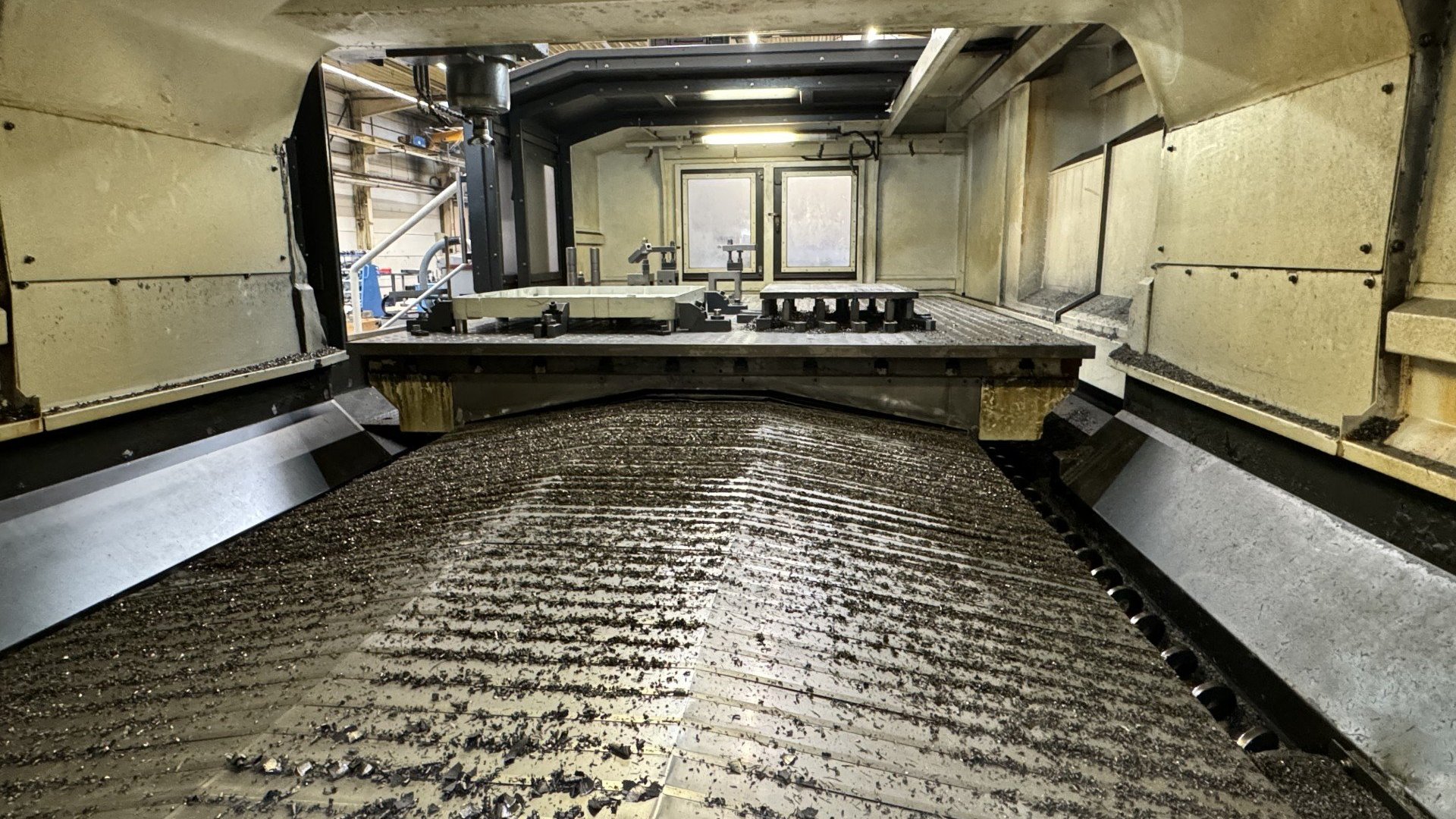

Double chip conveyor Left & Right
Spindle hours 17800 (02.2024)
Coolant Paper Filtration unit
Oil chiller
Recent new telescopic covers in X-Travel
Recent new telescopic covers in Y-Travel

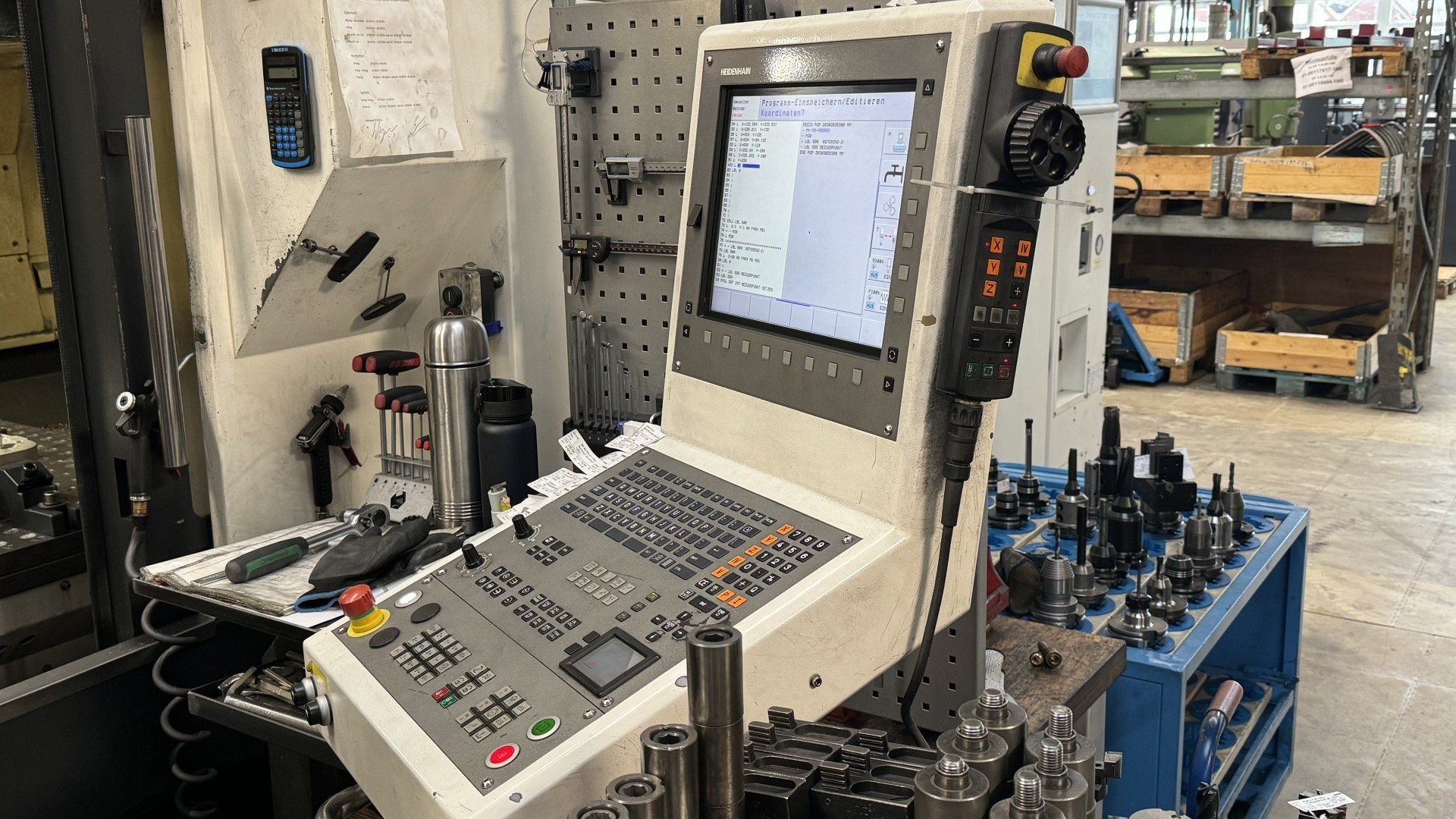

HeidenHain iTNC 530 control system
HeidenHain HR-410 Handwheel
X - Travel: 2200mm
Y - Travel: 1650mm
Z - Travel: 800mm
Distance between column: 2100mm

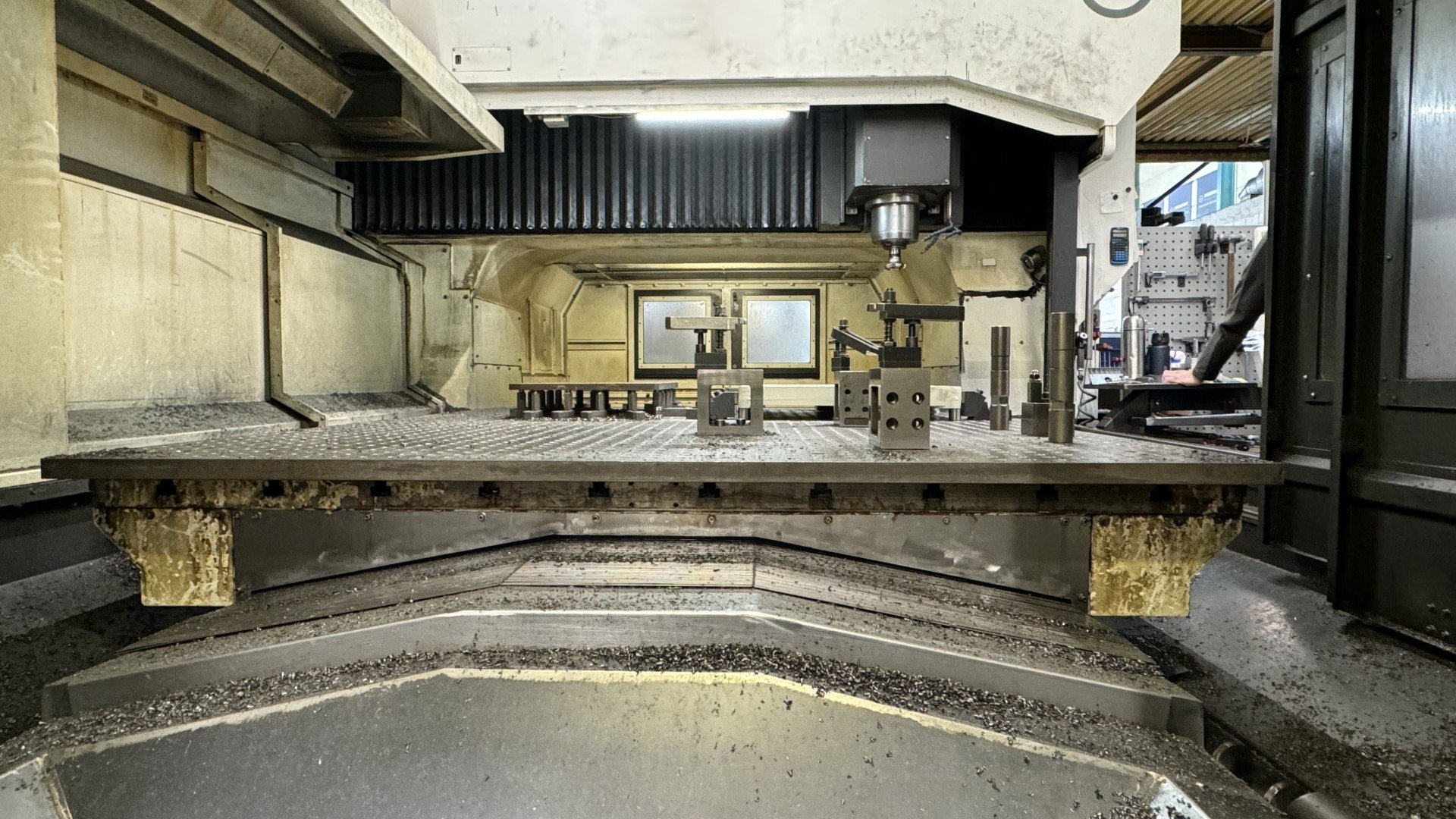

Table Length: 2400mm
Table Width: 1600mm
Table load: 10000
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 20000mm/min.

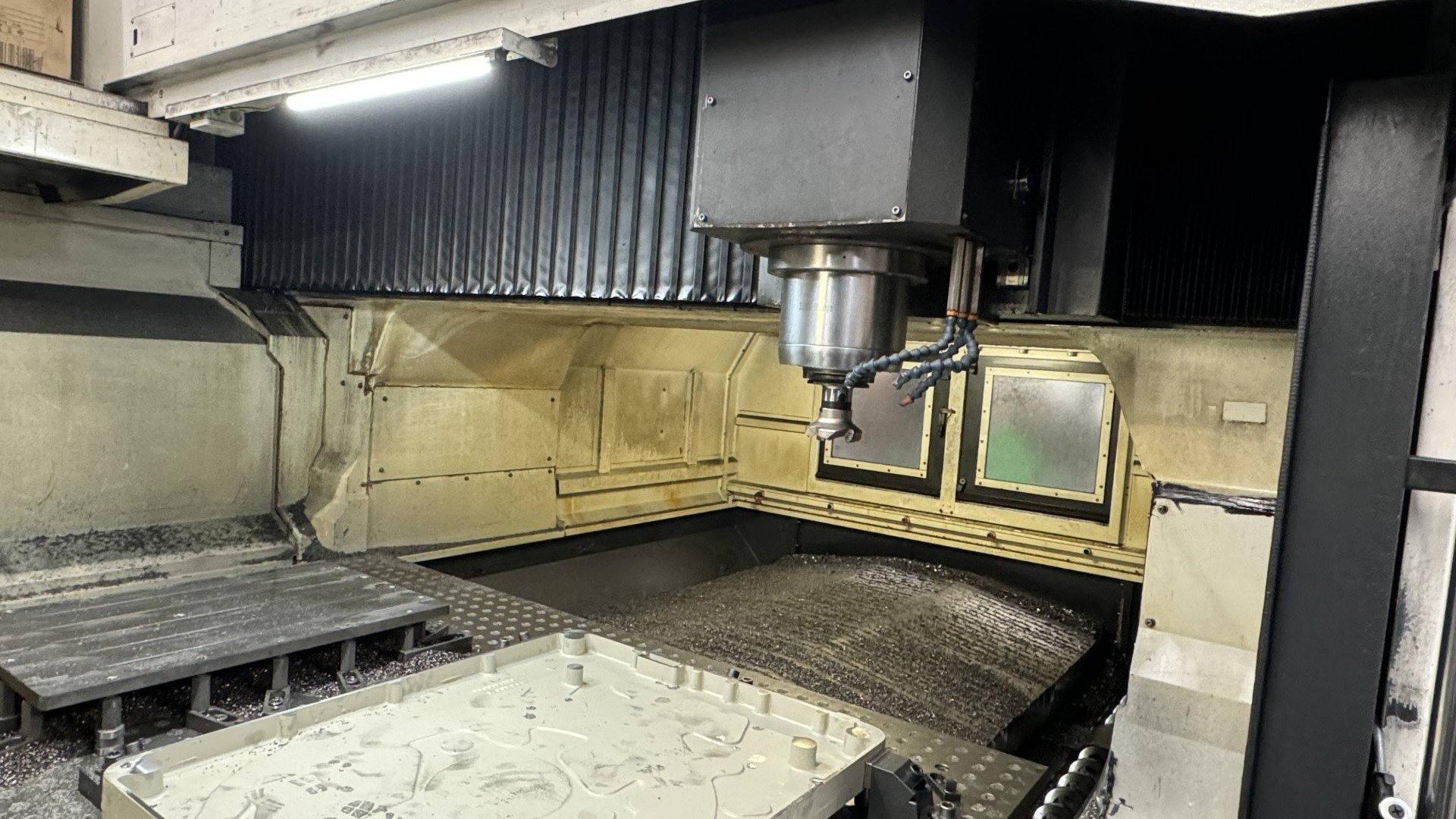

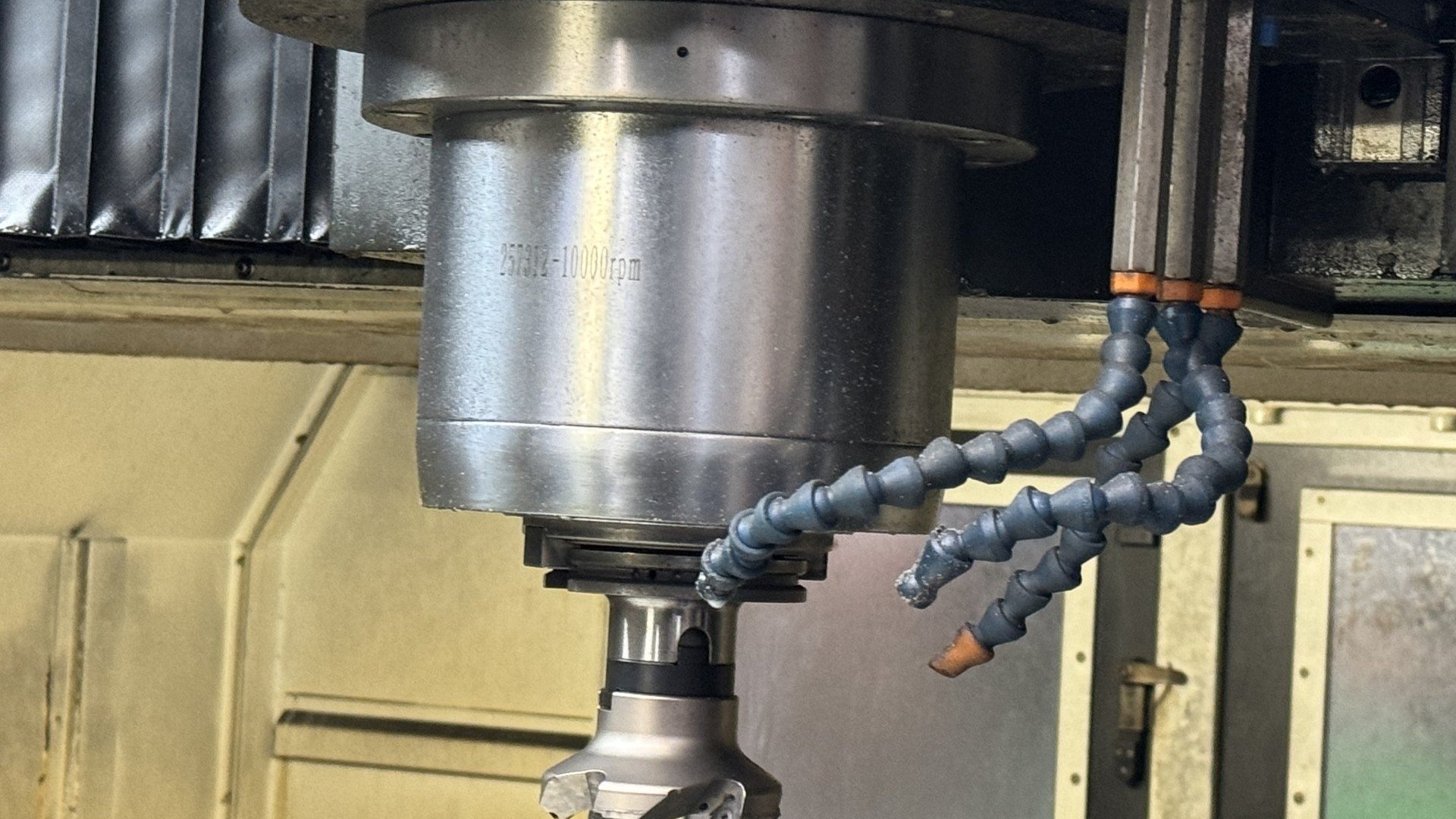

Spindle Taper: 50ISO/Bt/Mk
Power on spindle: 25kW
Speeds / ranges: 10000Rpm

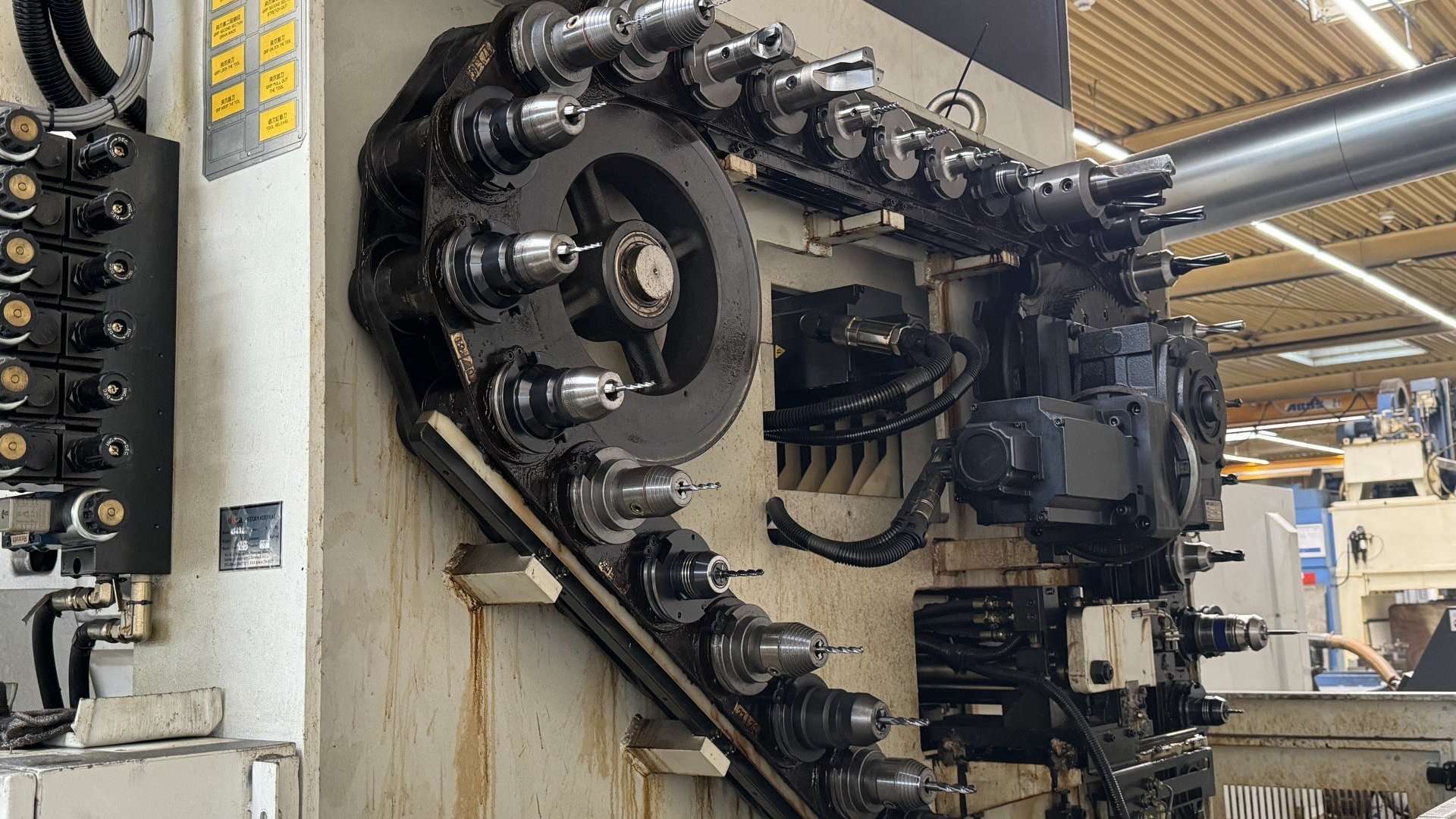

ATC / revolver: 60
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6500mm
Width: 6000mm
Height: 3900mm
Weight: 27000kg
Specifications:
Portal milling machine
Wemas - VZP 2200
Double chip conveyor Left & Right
Spindle hours 17800 (02.2024)
Coolant Paper Filtration unit
Oil chiller
Recent new telescopic covers in X-Travel
Recent new telescopic covers in Y-Travel
HeidenHain iTNC 530 control system
HeidenHain HR-410 Handwheel
X - Travel: 2200mm
Y - Travel: 1650mm
Z - Travel: 800mm
Distance between column: 2100mm
Table Length: 2400mm
Table Width: 1600mm
Table load: 10000
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 20000mm/min.
Spindle Taper: 50ISO/Bt/Mk
Power on spindle: 25kW
Speeds / ranges: 10000Rpm
ATC / revolver: 60
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6500mm
Width: 6000mm
Height: 3900mm
Weight: 27000kg
