Description:

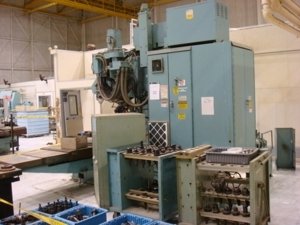

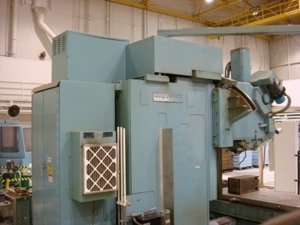

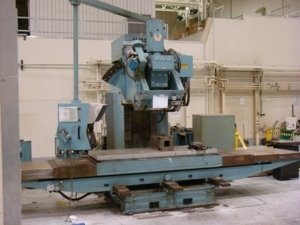

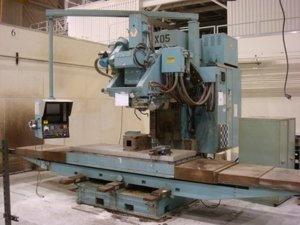

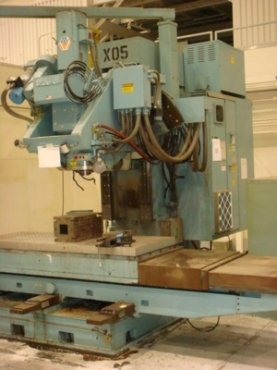

80"X, 30"Y, 24"Z, CINCINNATI MILACRON MODEL 20V-80, 5-AXIS, 3600 RPM, #50-T., ACRAMATIC 950 PENDANT CTRL. LOADED WITH TOOLING, VERY NICE CONDITION, THIS MACHINE JUST RELEASED FROM THE BOEING SPACE SHUTTLE MACHINE SHOP THAT CLOSED BECAUSE THE SHUTTLE PROGRAM HAS ENDED. PLEASE SEE DETAILED SPECS AND EXTENSIVE LIST OF TOOLING BELOW.
Specifications:
FROM AEROPSACE - COMING OUT OF THE BOEING SPACE SHUTTLE MACHINE SHOP
LOCATED IN PALMDALE, CA. WHERE THE SHUTTLES WERE MADE AND MODIFED UP
UNTIL TWO YEARS AGO DUE TO THE ENDING OF THE SHUTTLE PROGRAM. THIS
MACHINE COMES WITH A HUGE ASSORTMENT OF TOOL HOLDERS AND TOOLING.
PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION:
AGE (APPROXIMATE) .............................. 1989
TABLE SIZE ..................................... 30" X 84"
X-AXIS (LONGITUDINAL TABLE TRAVEL) ............. 80"
Y-AXIS (SADDLE CROSS TRAVEL) ................... 30"
Z-AXIS (VERTICAL SPINDLE HEAD TRAVEL) .......... 24"

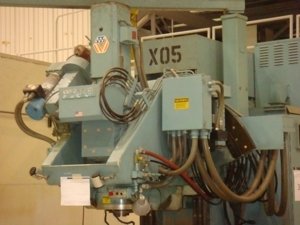

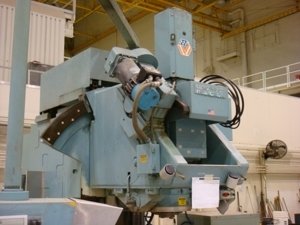

A-AXIS (TILT OF CROSS PLANE SPINDLE CARRIER) ... +/- 25 DEG.
B-AXIS (TILT OF LONG. PLANE SPINDLE CARRIER) .. +/- 25 DEG.
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE .... 5" TO 29"
SPINDLE SPEEDS (23) THROUGH (4) GEAR RANGES .... 20 TO 3600 RPM
SPINDLE TAPER .................................. #50 V-FLANGE
SPINDLE DRIVE .................................. 20 HP
FEEDS (X-Y-Z) .................................. 0 TO 150 IPM
ALLOWABLE TABLE LOAD ........................... 7000 LBS.

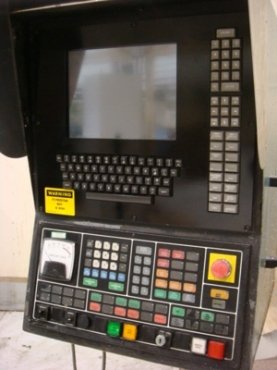

CONTROL: ACRAMATIC 950 5-AXIS CNC PENDANT TYPE
EQUIPPED WITH:
FULL 5-AXIS PROFILE AND CONTOUR MILLING CAPABILITY
PRECISION BALLSCREW DRIVES FOR X-Y-Z
RACK AND PINION DRIVES WITH A & B AXIS SWIVEL
PENDANT OPERATOR'S CONTROL
STEEL WAY COVERS
COOLANT SYSTEM

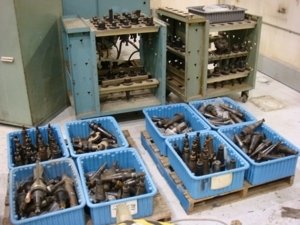

(240) ERICKSON TOOL HOLDERS (LARGE ASSORTMENT OF END MILLS, COLLET CHUCKS,
DRILL CHUCKS, BORING HEADS, LONG AND SHORT HOLDERS, DRILLS, INSERT TOOLING
CUTTERS, COLLETS, ETC.
BROWN & SHARPE PRESETTER, S/N 30105022281
ALUMINUM VACUUM CHUCK-SIZE: 30-3/4" X 86" X 3" HIGH
KURT 6" MILL VISE
10" X 10" X 20" HIGH TOOMSTONE
STEEL TOOLHOLDER CABINET WITH THREE ROLL OUT DRAWERS
(2) ROLL AROUND HEAVY-DUTY TOOL HOLDER CARTS
LARGE QUANTITY OF CINCINNATI MILACRON MANUALS, SCHEMATICS, ETC.
SUBJECT TO PRIOR SALE, F.O.B. AS-IS, CALIFORNIA
