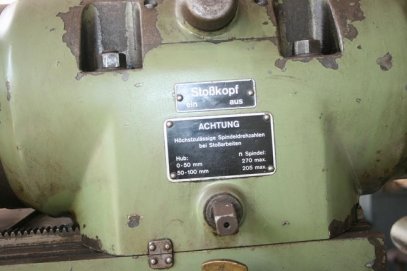

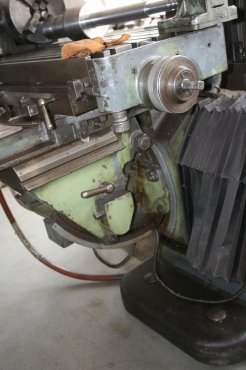

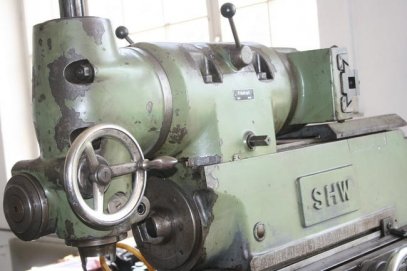

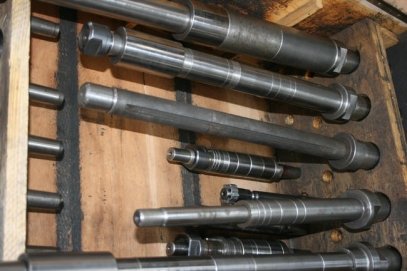

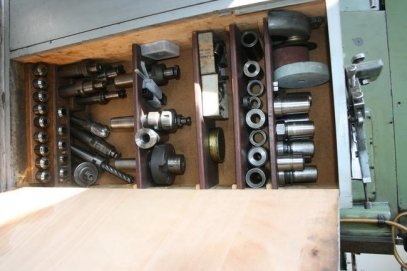

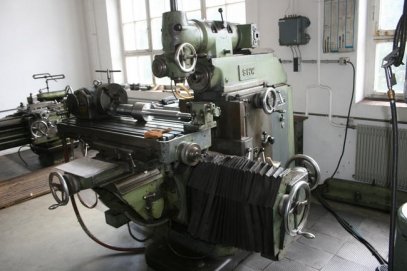

Universal tool milling machine with vertical milling and Stossapperat horizontal and Vertikalfrässpindel MK 5 traverse head 442mm table horizontal cross-300mm is total travel 742mm Table travel longitudinally total Tabletop console (support) 650mm top table 370mm makes total distance table along 1.020mm The special feature of the machine, the table is in all three axes pivotably driven by 30 and has feed clamping milling table 400x1.080mm swivel range vertical head and butt heads with 180 quill cutter head 100mm ram stroke Stosskopf 0-100mm spindle speeds from 33 to 2170 U / min, accessories. Horizontalfräseinriuchtung (beams and abutment) div.lange arbors div.kurze mill holders chuck feed goes nicht.Laut Abgeber there is what was ausgehängt.Gefräst in advance transmission be repaired only with the advance of the milling table Can surcharge. Weight about 4.5 tons, size 2 x 2, 5 n Evtl.könnte also the universal table are used (zBauf Tischbohrwerk)
