Table size 700 x 280 mm

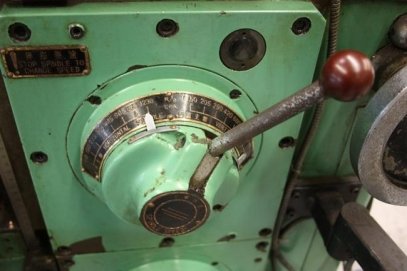

Spindle speed 150-1660 (vert) / 110-1230 (horizontal) U / min
Travel along (x) 300 mm
Positioning range (y) 200 mm
Travel (z) 350 mm
Taper ISO 40 / DIN 2080
Quill travel 80 mm
T-slot T14
Engine power 3.0 kW 400 Volt
Weight 1150 kg
Dimensions 1310 x 1380 x 1650 mm

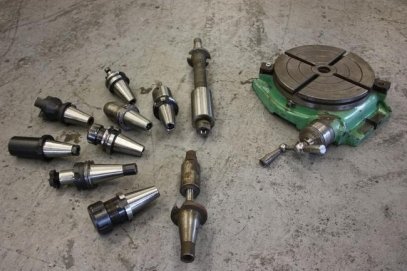

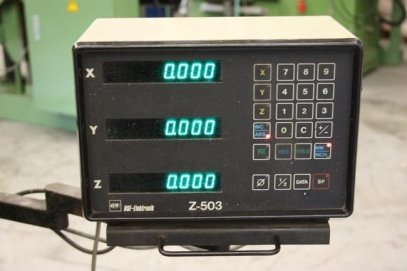

Accessories 3-axis DRO, coolant system, horizontal spindle, chip tray, mounting arm for vertical head.
