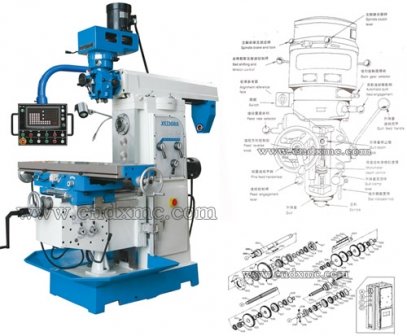

DXMC, LM-1450A, TURRET, MILLERS

Spindle taper

ISO 40(vertical)
ISO 50(horizontal)

Distance from vertical spindle to worktable

135-485mm

Distance from horizontal spindle to worktable

0-350mm

Spindle speeds

75-4540rpm(vertical)
60-1800rpm(horizontal)

Table size
1500*360mm

Max.travel of table

900*400*405mm

Main motor power

4.0kw(H) 3.7kw/2 (v)

Arm travel

500mm

Overall dimension

2000*2000*2250MM

N、W、/G、W、

2650/2850kg

Dealer name:

Tengzhou Dongxin Machine Tool Co., Ltd China, Teng zhou
