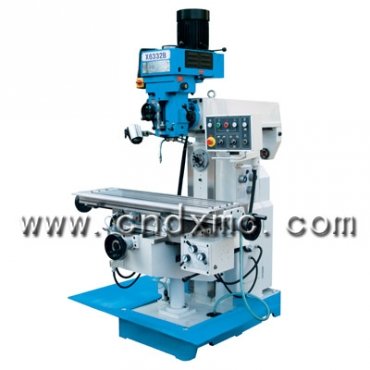

Vertical&Horizontal Turret Milling Machine

Specifications

X6332B

Spindle taper

ISO40

Spindle travel(mm)

150

Distance from spindle to column(mm)

200-500(V)

Distance from spindle to table surface(mm)

155-455(V) 0-300(H)

Spindle speed range(r.p.m)

75-3500 V
12 step 60-1350 H

Table size

1250*320

Table travel

600*300*300

Main motor(kw)

3.7/2(V)

Table feeding speeds(8sets) (mm)

15-370 (rapid 540/min)

T-slot (number-width-disance) (mm)

3/4/70

Overall dimensions(mm)

1700×1520×2260

N.W/G.W (kg)

1750/1950
