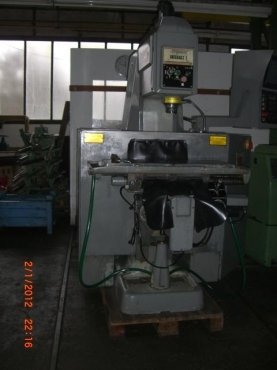

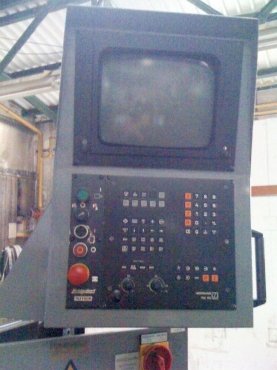

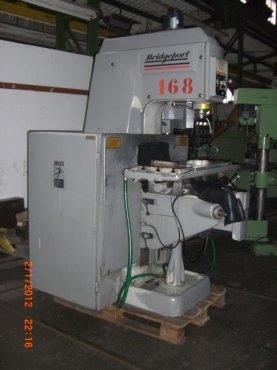

Bridgeport milling machine type: Interact I Mk 2 with Heidenhain TNC 155 Year: 1989 Range Metric Table travel (X axis) 457 mm Saddle Travel (Y axis) 305 mm Quill travel (Z axis) 127 mm Knee Travel 365 mm distance Throat Table to spindle 395 mm 51 mm Maximum component weight, centrally loadet approximate 136 kg Machine weight 1300 kg TABLE Overall Size 1067 x 410 mm Working surface 864 x 318 mm tea slots (3) centers width 111.1 mm 15.9 mm 6 Spindle Motor , Taper No. 9 kw. 30Quick Change Speed range (infinitely variable) 40-4.000rpm FEED DRIVE D.C. permanent magnet motor-stalltorqü 3-4 Nm Ballscrews-pitch 5 mm Manual feed rate range 10-750 min mm / min. Rapid feed rate 5000 mm min /. Programmable feed rate range 1 - min 5000 mm / min. Feed rate 1mm/min increments. MACHINE CONTROL AND PERFORMANCE-linear system resolution 0.001 mm 0.001 angular resolution 0.005 mm Display Positioning repeatabiity + / - 0.010 mm Positioning accuracy + / - 0.010 mm Drilling capacity-20mm dia mild vice. Milling capacity - mild steel 33 cm37 Boring min-max. dia 100 mm dia.
