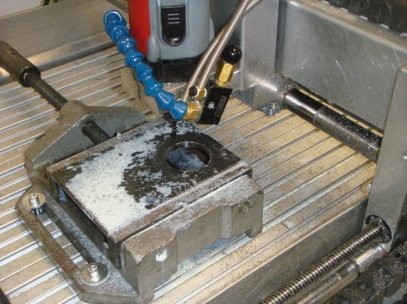

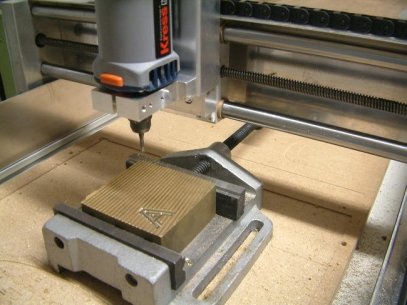

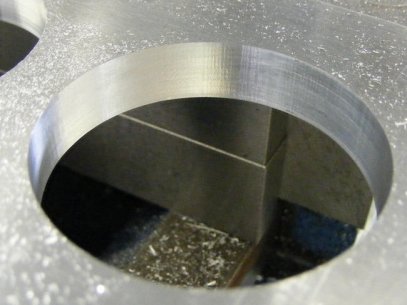

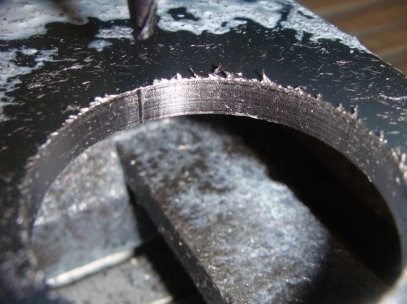

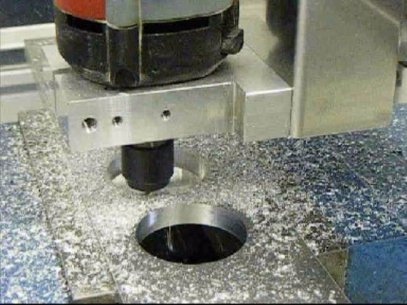

With the High-Z cnc router and engraving machine you purchase an allround talent. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc milling machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed).
Or if you simply want to do engraving- or drillingjobs…..you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth.
All cnc routers / milling machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc milling machines are equipped with an emergency stop button. An additional emergency stop you find in front of the controller.
Basic equipment of all High-Z CNC-milling and engraving machines / routers:
Software ConstruCAM-3D ( from S-720 and S-400/T ) included !!
Contact free reference switch and emergency stop button as well as 22mm thick linear guide ways and individually adapted screw nuts !!
Equipment / Productdetails:
•Drive : 4 stepping motor by Nanotec with 1600 steps/rev (1/8 Step)
•2 motors for constant tension and compression during milling operation on X-Axis
•Feed through of long workpieces possible, because there’s no belt drive at the end of the X-axle
•Guide ways X and Y axle 22 mm / Z Axis 16mm, grinded and with 61hrc hardened surface
•Ball bearings at both sides of trapezium spindles Tr. 12x3 mm flank lead
•Traverse speed of rapid feed: max. 2500 mm/min
•Technical resolution: 0,00187 mm ( 1/8 Schritt )
•Reversal error max.: +/- 30µm ( 0,03mm )
•Table size / clamping area: 1050 x 520 mm
•Traverse Paths: X=720 mm; Y=420 mm; Z= 110 mm
•Reference- and limit switch on all axes
•Double safety emergency stop button
•Energy chain for clean cabling
•Total dinemsions incl motors: L x W x H = appr. 1070 x 690 x 500mm
•Milling Motor anchorage: Euroneck Ø43mm
•incl. Software PC-NC or WIN PCNC Light
•incl. Software ConstruCAM-3D ( recommended sell price 1902.81 EUR)
•Modular frame for universal application
•Weight appr. 41 kg
•Complete machine Includet 4 driver microstep controller 4x 2,1 Ampere
•An approx. 30-minute long introduction during pick up and an unlimted telephone support are included.
•An approx. 2-3 hours long introduction and an installation of software on your brought note book/ PC as well as a explanation of fundamental terms of Corel Draw etc. possible, too.
Technical data of included microstep controller:
•4-channel control
•Power up to 4 x 2.4 A
•Micro pacing 1/8-Step / 1600 steps / rev.
•4 ports for 4 stepper motors
•Connection to parallel port or in WIN PCNC Economy to USB port
•"Sleep function" for power reduction in standby
•Protect against high voltage spikes
•E-stop button, 2-way secured
•Control of 2 power-consumers up to 1200 watts via software switchable (from WIN PCNC Economy), 230 V, 8A
•Power Supply Relay / Cooling
•Aluminum heatsink / 2 active fans 60 & 40mm
•Ability to connect a total of 5 end-and reference switches / stop button
•Ports motors and control line through D-sub 9-pin.
