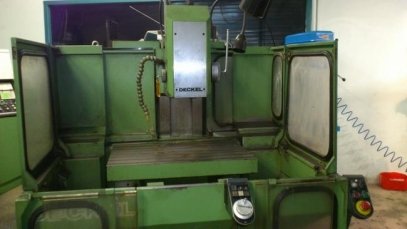

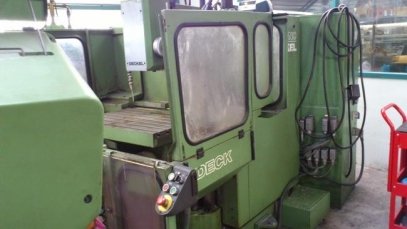

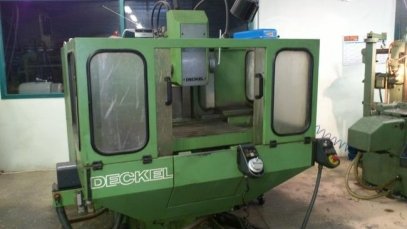

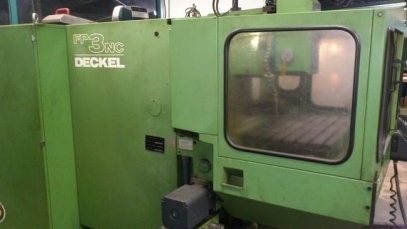

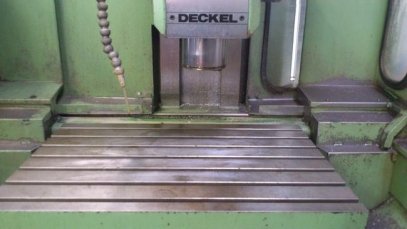

CNC universal milling machine Deckel FP3 CNC Dialog 11 + cab + handwheels CNC Bahnsteürung GRUNDIG Dialog 11 routes X: 400 mm Y 400 mm Z: 400 mm Table size 710 x 425 mm spindle taper ISO 40 spindle speed 25 - 4000 U / min. 22 steps feed speed 10 - 2000 mm / min. infinitely rapid traverse 4000 mm / min main spindle drive 2/3 kW power supply 380 volt, 50 Hz Pinolverschiebung on vertical head 80 mm Pinolverschiebung Horizontal 80 mm hydraulic tool clamping Swivelling control panel manual hand wheels in all three axes cabin coolant system in addition to standing space machine (approx.) L x W x H 2500 x 2000 x 2000 mm Weight 2000 kg The machine is functional and can always be inspected under power.

-
