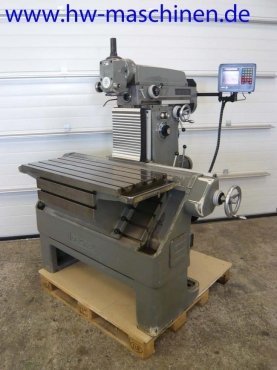

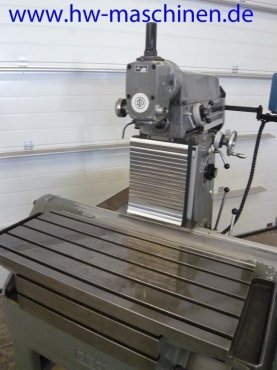

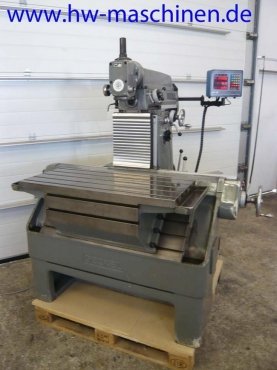

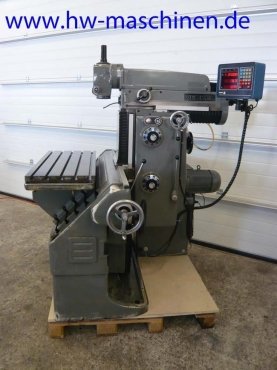

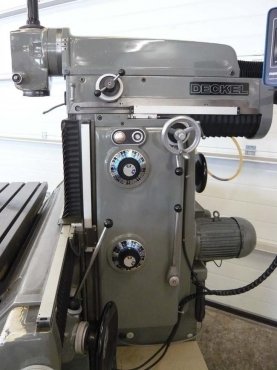

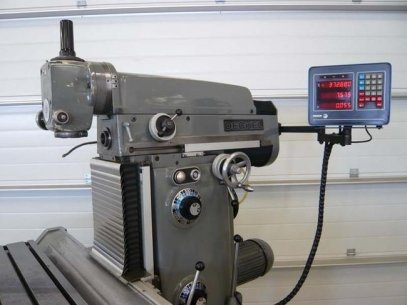

Universalfräsmaschine FP3L cover with 3 axis digital display Fagor excellent condition Specifications: Built about 1972 machine Nr.1159 3 axis digital display Fagor Rigide table (clamping surface 1000 mm x 440 mm) Speed: 40 - 2000 U / min feed and rapid traverse 3-axis feed of 10 to 500 mm / min rapid traverse 1500 mm / min feed rate in all directions, driving power. 2.2 KW X / Y / Z: 800/300/400 mm (Y travel another 200 displaced) Equipment: Vertical & Horizontal spindle and vertical spindle Horizontalpinole extendable SK40 tightening system S20x2 weight about 1900 kg Equipment and Information: 3 Axis Digital display of Fagor Mechanical lubrication instructions to machine: Offered is a universal milling machine lid FP3L in very good original condition. The cover has very little crank game and all the spindles move easily. The vertical head can be moved by 200 mm to allow for an even greater working range. A central pump provides lubrication of the various axes. The special feature of this machine type is the basic structure, is this is a machine with slanted table bed. The motions are of the work spindle and the tool thus assigned. The accuracy is very high, since different workpiece weights do not affect the axis movements. Me [...Technical data truncated]
