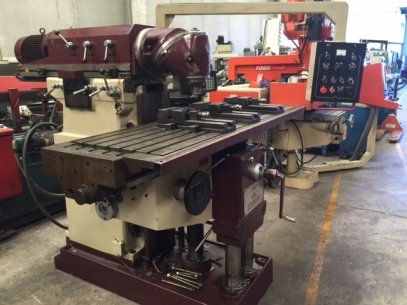

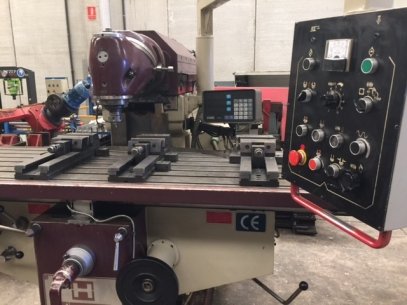

Universal Milling Machine Heller FCM 2000 Working surface 2000 x 600 3-axis DRO Sonne
Working surface: 2000 x 600 mm
T-slots: 5 x 18 mm
Maximum weight admitted on table: 1800 kg
Longitudinal travel: 1500 mm
Cross travel: 700 mm
Vertical travel: 500 mm
Table feedrate: Shifter
Longitudinal feedrate: 10-1000 mm / min
Cross feedrate: 5-500 mm / min
Vertical feedrate: 10-1000 mm / min
Longitudinal and transverse rapid feedate: 2200 mm / min
Vertical rapid feedrate: 1100 mm / min
Spindle taper: ISO 50
Speed range: 30-2050 rpm
Number of gears: 27
Translation of the ram: Motorized
Course of the ram: 700 mm
Working feedrate of the head of the ram: 5-500 mm / min
Ram spindle power: 11 kW
Distance spindle front to guide the ram: 760 mm
Max spindle to table: 530 mm
Dimensions (L x W x H): 2986 x 2150 x 1950 mm
Year: 2004
3-axis DRO SONNE
Universal head
Moving ball screw, axes X, Y
3 independent axes controlled by servomotors
Temperate guides
Refrigeration equipment
CE Norms
Specifications:
Working surface: 2000 x 600 mm
T-slots: 5 x 18 mm
Maximum weight admitted on table: 1800 kg
Longitudinal travel: 1500 mm
Cross travel: 700 mm
Vertical travel: 500 mm
Table feedrate: Shifter
Longitudinal feedrate: 10-1000 mm / min
Cross feedrate: 5-500 mm / min
Vertical feedrate: 10-1000 mm / min
Longitudinal and transverse rapid feedate: 2200 mm / min
Vertical rapid feedrate: 1100 mm / min
Spindle taper: ISO 50
Speed range: 30-2050 rpm
Number of gears: 27
Translation of the ram: Motorized
Course of the ram: 700 mm
Working feedrate of the head of the ram: 5-500 mm / min
Ram spindle power: 11 kW
Distance spindle front to guide the ram: 760 mm
Max spindle to table: 530 mm
Dimensions (L x W x H): 2986 x 2150 x 1950 mm
Year: 2004
3-axis DRO SONNE
Universal head
Moving ball screw, axes X, Y
3 independent axes controlled by servomotors
Temperate guides
Refrigeration equipment
CE Norms
