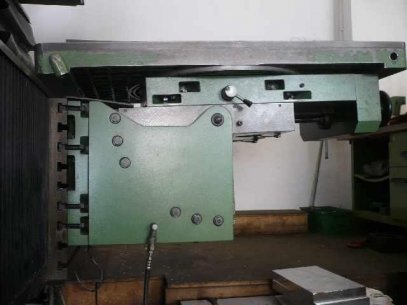

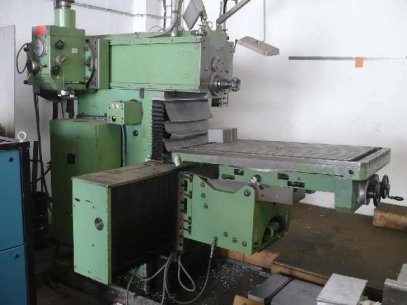

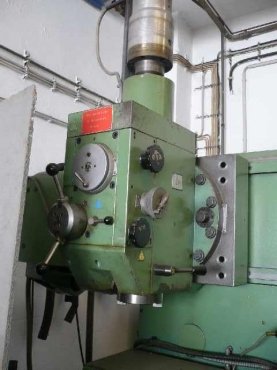

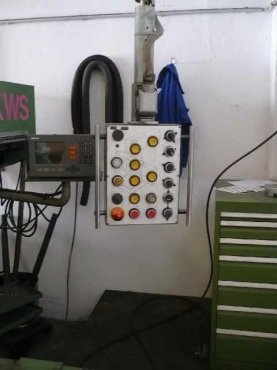

Universal milling and boring machine Maho 1100 M Technical Data: x - travel 1100 mm y - travel 750 mm z - travel 600 mm Universal allows table to rotate 360 and tilt in the X + Y axis table size 1250 x 650 mm taper ISO 50 turning speed range 20 - 1000 rev / min rapid traverse rate 1.4 / 0.7 m / min feed speed 10 - 500 mm / min 7.5 kW drive power quill stroke 100 mm Weight 4,7 t Dimensions LxWxH 2.50 x 2.40 x 2.76 m Accessories: swiveling vertical head with quill feed in the switchable 3-axis digital display graphs of Hydra tool clamping coolant system More info on request
