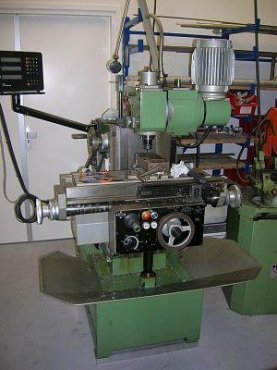

1 used High Precision-Universal Milling Machine
Make SCHAUBLIN, mod. 22,
new 1982 with 3-axis d.r.o.
Workrange: 400 x 330 x 475 mm,
main motor: 1,5 kW
Equipment:
Rigid Table size 650 x 250 mm,
Rotary Table diameter 200 mm,
dividing head height of centers 100 mm,
machine vice 100 mm,
1 collet chuck ISO-40 with collets,
5 Tool holders SK-40
Remarks:
Swivelling milling head,
Speed range 63 - 2800 rpm,
tailstock stroke 60 mm
Measurements 1,10 x 1,40 x 1,60 m,
Weight 950 kg
