CNC 6-Axis Universal Milling Machine

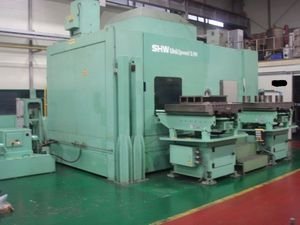

2-station pallet changer:
Pallet size 1250 x 1200 mm
Pallet load 4000 kg
Table indexing (C-axis) 0.001°

Travels:
X 2500 mm
Y 1200 mm
Z 1400 mm

Feeds X,Y,Z 0 - 18000 mm/min
Rapids X,Y,Z 18000 mm/min.

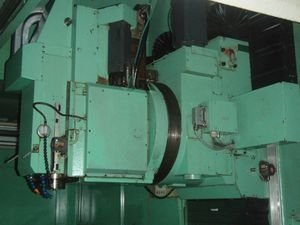

NC tilting spindle with travelling spindle head:
Spindle indexing (B-axis) 0.0001°
Spindle tilting range +/- 90°
Spindle drive motor rating 35 KW
Spindle speeds 45 - 6000 rpm
Spindle head vertical travel (W-axis) +/- 150 mm
Feeds B,C 0 - 2160 °/min.
Feeds W 0 - 4000 mm/min.
Rapids B,C 2160 °/min.
Rapids W 4000 mm/min.

Automatic tool changer:
90 tool positions
Tool taper ISO 50

Work piece height max. 1270 mm
