Stocknumber 1110023

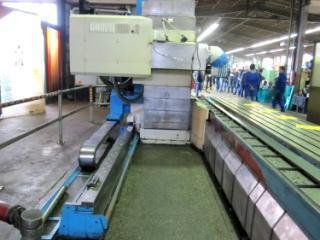

Type of machine CNC Bedtype Milling machine
Make SORALUCE
Type Soramill SL 5000
Build in 1995

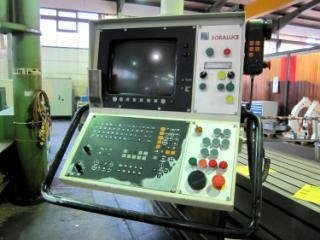

Type of control HEIDENHAIN TNC 415 B

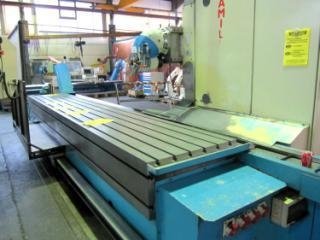

Table dimensions (mm) 5000 x 800 mm
X-stroke (mm) 3500
Y-stroke (mm) 900
Z-stroke (mm) 1000
Table load max. 12,5 ton
Speeds (Rpm) 20 -. 2.000
Admission in spindlehead Iso 50
Feeds X (mm/R) 5 - 10000 mm/min.
Rapid feeds 12 mtr/min.
Total Power (KW) 22
Lenght (mm) 7250
Width (mm) 3900
Height (mm) 3200
Weight 16500 kg
Additional information

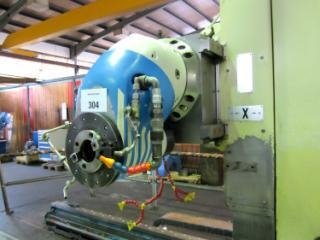

CNC Controlled Milling head
