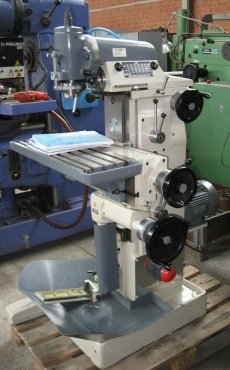

Vertical work table clamping surface 550x195 mm Fixed angle table clamping surface 620x195 mm Number of grooves 4 T-groove width 14 mm distance of 50 mm T-slots traverse taper ISO 40 Number of spindle speeds 12 speed range 55-2450 U / min. Quill travel 60 mm distance spindle nose to table 22-312 mm, the milling head swivel range + - 45 min horizontal spindle taper ISO 40 Number of spindle speeds 12 speed range 42-2150 U /. Distance spindle mid-table min 70-360 mm feed number of feeds 12 feed range 10-380 mm / min. Dimensions LxWxH 1150x1100x1600 mm Weight 890 kg Accessories: - 1 coolant system - a rigid angle table - 1 Steady for horizontal spindle
