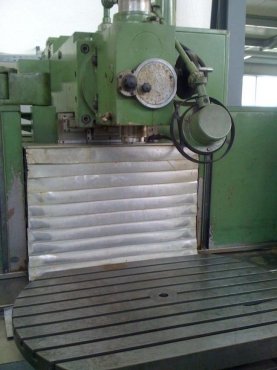

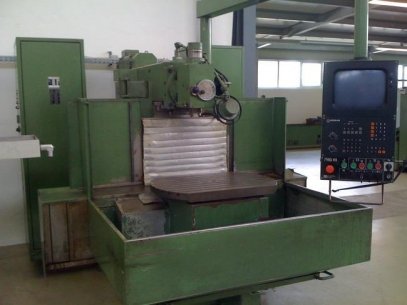

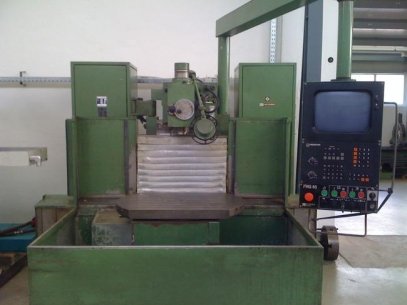

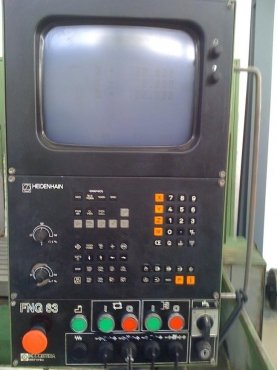

The machine is in very good condition (only one prior owner), only few operating hours. Machine was installed first time and equipped with CNC Heidenhain TNC 355 in 1996.
-x travel mm 800
-y travel mm 630
-z travel mm 500
-feed stepless mm/min 1-7500
-rapid traverse feeds mm/min 7500
-tool cone ISO 40
-spindle drive motor kW 10
-turning spindle range - spindle U/min 20-4000
-torque of spindles Nm 630
-total connected load kW 25
-weight of the machine t 5
-dimensions of the machine ca. qm 15
-standard accessorie-

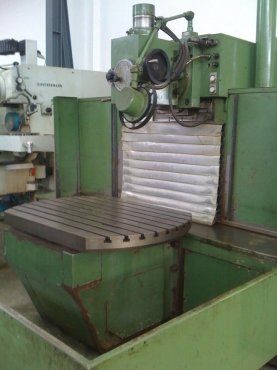

-rotary table ISS CNC as 4th CNC axis
