travelling distances X - 800 mm; Y - 220 mm; Z - 400 mm

clamping surface 1,250 x 260 mm

spindle adaptor SK 40

horizontal spindle rotations 50 to 2,240 r/min

vertical spindle rotations 56 to 2,500 r/min

infeed stages 18

- X and Y 20 to 1,000 mm/min

- Z - 10 to 500 mm/min

rapid feed X and Y 3.4 m/min

rapid feed Z - 1.7 m/min

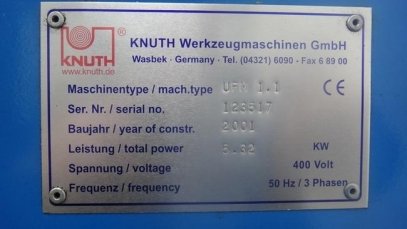

electrical data 380V / 1.1 + 3.0 KW

space required length - 1,950 x width - 2,100 x height -
2,650 mm

weight approx. 1,500 kg

-
