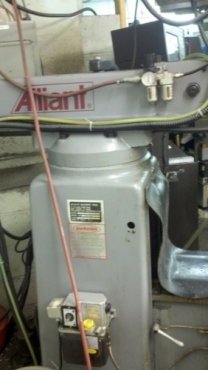

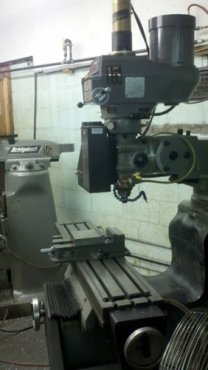

Alliant 10543V 2001 3-Axis CNC Knee Mill, Anilam 3000, 30 Taper, Power Drawbar, Tooling

General Specifications As Per Brochure

Specifications:
Table size: 10" x 54"
Max. workpiece weight: 800 Lbs
X-Axis travel: 37"
Y-Axis travel: 16"
Z-Axis travel: 16"
Quill diameter: 3-3/8"
Quill travel: 4-7/8"
Spindle taper: 30 Taper
Spindle motor: 3HP
Spindle speeds: 70 - 4200 Rpm
Min. to max. distance spindle center
to face of column: 6-1/4" - 27"
Min. to max. distance from spindle to
table: 3/4" - 16-1/4"
Weight (approx.): 2,800 Lbs
Dimensions (approx.): 72" x 64" x 88"

72 x 647 x 88

2800
