Description:
Machine equipped with: Acu-Rite III two axis DRO, #4 quick switch spindle, feeds on quill and knee and table, chromed box ways on saddle, coolant system, automatic lubrication system, 30" table travel, 15" cross travel, 16" knee travel, 16" ram travel, 26 5/8" max throat distance, 1,500 lbs max. table load, 50-3500 Spindle speeds, 5" quill travel, Approx. machine weight- 5,500 lbs.
Specifications:
Proposal for Machine #9123
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

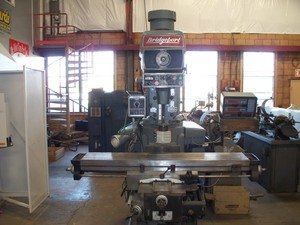

1-Used Bridgeport Vertical Mill
Model Number: Series II
Serial Number: 6882
Mfg: 1987
Specifications:
Working surface of table 11” x 58”
Range:
Longitudinal 30”
Cross 15”
Vertical (knee) 16”
Ram travel 16”
Maximum throat distance 26-5/8”
Minimum throat distance 10-5/8”
Maximum table load capacity 1,500 lbs
Spindle speeds, two ranges 50 to 450 RPM
Infinitely variable 450 to 3500 RPM
Quill travel 5”
Quill power feed range .6 to 2.5 IPM
Feeds:
Longitudinal 3/8 to 24 IPM
Cross 3/16 to 12 IPM
Rapid traverse rate:
Longitudinal and cross 24 IPM
Vertical (knee) 12 IPM
Taper in spindle #40 quick
Head tilts:
Left to right 90deg
Front to back 30 deg
Ram swivels 360 Deg
Est weight 5,500 lbs
Machine Equipped With:
Acu-Rite III two axis DRO, #4- quick switch spindle, feeds on quill & knee & table, chromed box ways on saddle, coolant system, automatic lubrication system, 4 horse power spindle motor
Price FOB Orange City, IA $12,500.00
Weight:
5,500 lbs.
