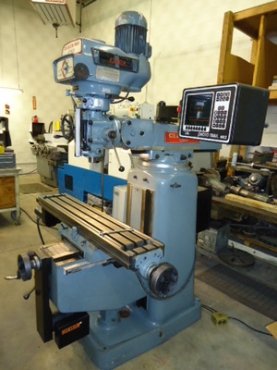

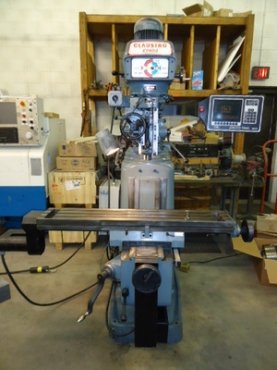

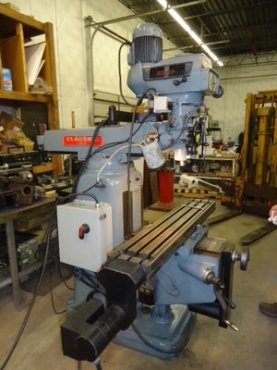

Clausing-Kondia Model FV148VS08, 3 HP Vari-Speed,Knee Mill
W/ Prototrak MX2 2 Axis CNC Control
Specifications:
Clausing-Kondia Model FV148VS08, 3 HP Vari-Speed,Knee Mill
W/ Prototrak MX2 2 Axis CNC Control
Specifications:
Serial Number--------Z-61
Year-----------------
Travel, X Axis---------36”
Y Axis-----------15”
Z Axis-----------16”
Quill-------------5”

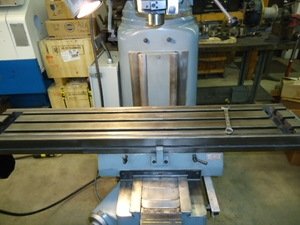

Table Size—-----------9” x 48”
Table Load------------880 lbs.
Spindle Taper---------R-8
Spindle Speed--------60 to 4,000 RPM
Spindle Motor---------3 HP
Electrics---------------230V/3ph/60hz
Weight, Approx.------3,200 lbs.
Dimensions-----------101” x 78” x 83”H
Equipped with;

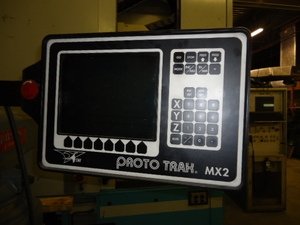

• Prototrak MX2 CNC Control
• Quill Digital readout
• Available for inspection under power
Preliminary Specifications, Subject to correction
F.O.B. Wisconsin Location
