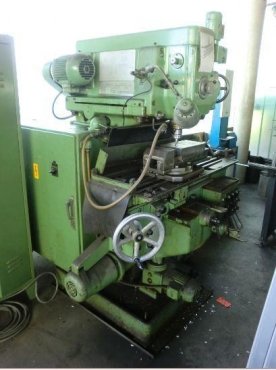

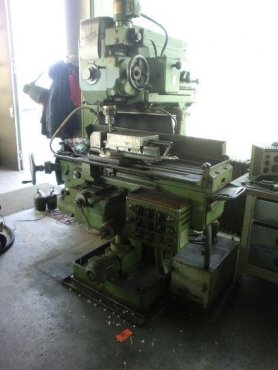

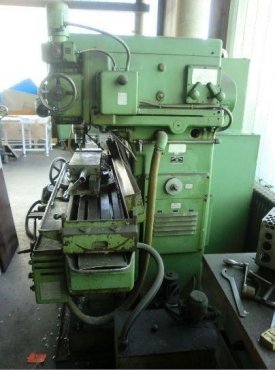

Milling Machine Manufacturer: Hurth type: LF 4 Year: 1986 Spindle internal taper: DIN 2079 tensionable cylindrical tool shank: max. 25 mm diameter for deflection movement groove width: 0.03-3 mm vertical movement of the spindle: 100 mm Automatic Rapid traverse: 95mm motors (at frequency 60 Hz) and spindle down feed: 2.2 1900 U / min Frässpindelauslenkbewegung 0.12 1800 U / min table longitudinal feed: 0.12 / 0.5 900/3600 U / min feed table height: 0.74 3600 rev / min Pinoleneilgang 0.12 1200 rev / min Kühlmitteltauchpunpe 0.26 3600U / min Clamping table surface: 1240x300mm BreitexAbstand the 3 T-slots: 16x60 Length adjustment: 400 mm Qürverstellung: 220 mm Height adjustment: 460 mm Range: radius of the milling spindle: 305 mm Distance: between spindle and table: 95/507 mm space: widthxdepthxheight: 2300x1760x2370 cm
