X – Travel 1016 mm
Y – Travel 508 mm
Z – Travel 569 mm

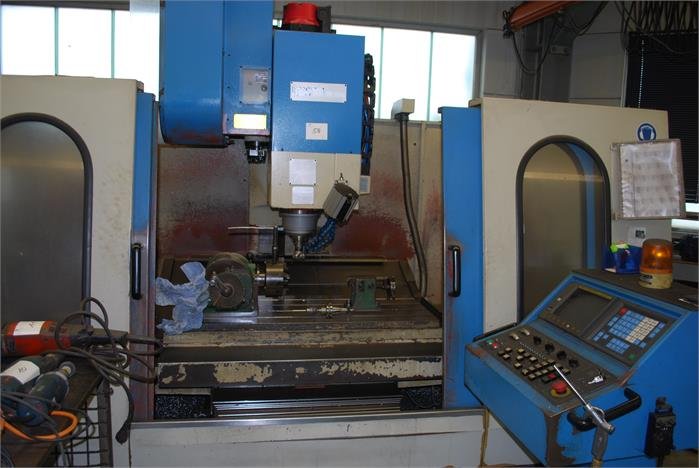

bed / plano / portal / moving column VMC

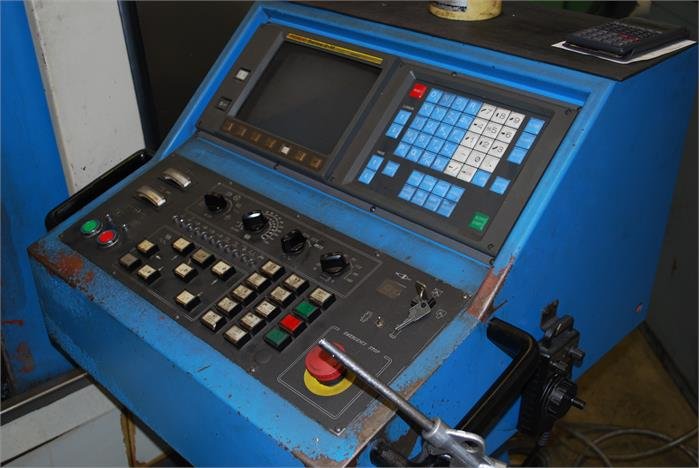

Controll Fanuc O-M
Table Length x Width 1100 x 500 mm
Table load 800 Kg

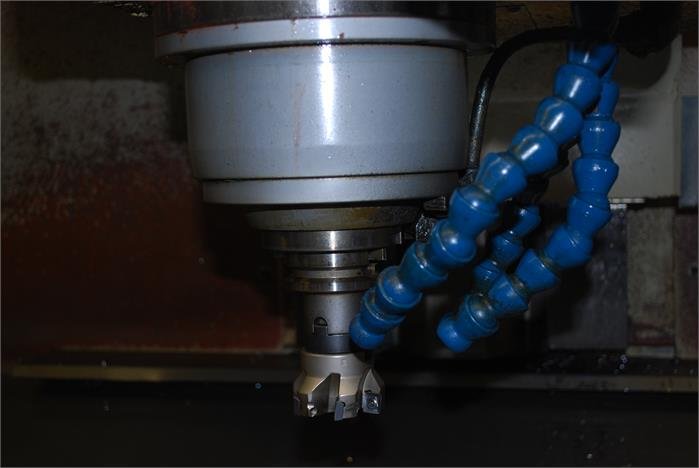

Spindle Taper Bt 40
power on spindle 7.5 kW
Spindle speeds / ranges 6000 Rpm

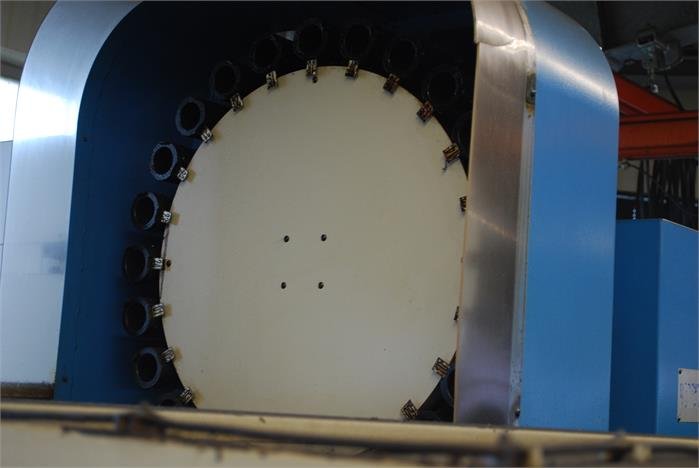

ATC tool changer 24 Positions
Number off controlled axis 3
Specifications:
X – Travel 1016 mm
Y – Travel 508 mm
Z – Travel 569 mm
bed / plano / portal / moving column VMC
Controll Fanuc O-M
Table Length x Width 1100 x 500 mm
Table load 800 Kg
Spindle Taper Bt 40
power on spindle 7.5 kW
Spindle speeds / ranges 6000 Rpm
ATC tool changer 24 Positions
Number off controlled axis 3
